Daly Intelligent BMS Li-ion Lifepo 8S 24V Li-Ion 60A Bluetooth 18 66 128

Daly Intelligent BMS Li-ion Lifepo 8S 24V Li-Ion 60A Bluetooth 18 66 128

Product Description:

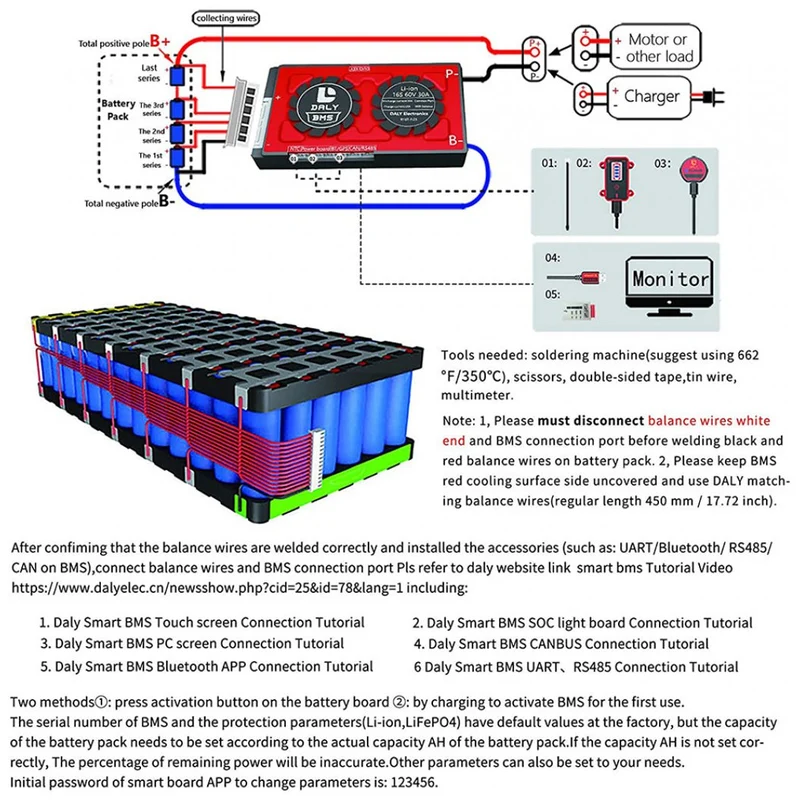

• For our smart BMS, when first use, need to activate first, then B-P conductive, BMS can work well.
• Method ①: Buy the power board and there is an enable switch on the board and click the button.
• Method ②: Charging activation, line B should be the total negative pole of the battery pack when charging.
• Load. 3S ~ 5S, J series (10J, 16J) BMS can only be activated in this way.
• LCD touch screen and bluetooth function do not work/exist on the same BMS! !!! You can only choose one of them.
• Description of main functions:
• Overload protection: Yes
• Over-discharge protection: Yes
• Overcurrent Protection: Yes
• Temperature protection: Yes
• Disconnection Protection: Yes
• Short circuit protection: Yes
• Short circuit protection recovery: Yes
• Balance function: Yes

Advantages:

1. The BMS was manufactured by imported high quality MOS and IC. Keep the battery long cycle life.
2. Uses high quality (level A) protection chip, sourced from Japan solution.
3. Extremely low energy consumption. The consumption of the entire device is less than 50uA.

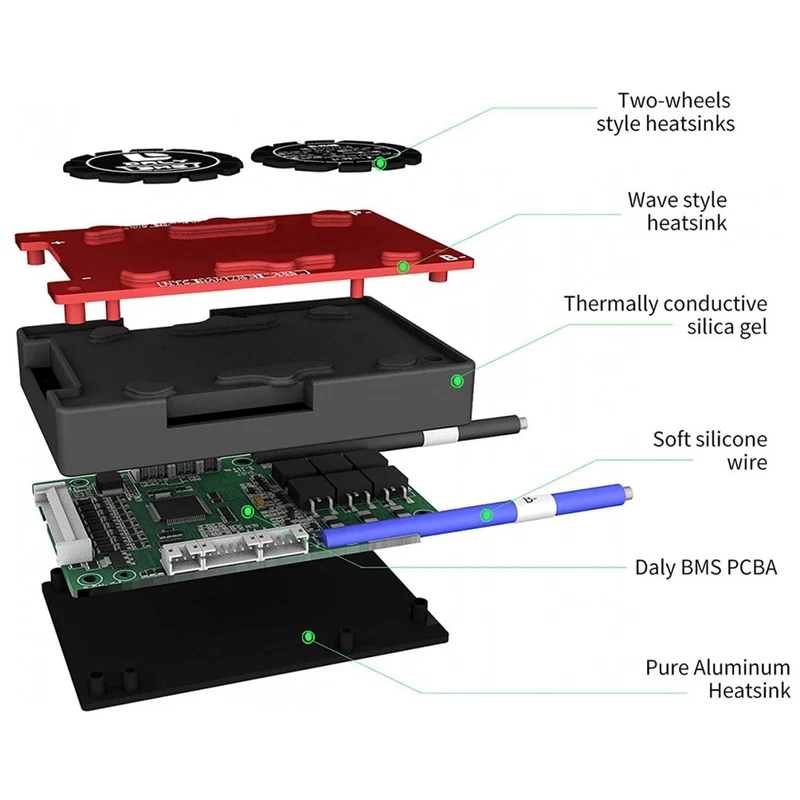

4. Using high corrosion and water resistance PCB, high impedance coating compliant with ESD standards.

Function:

• UART: UART is a universal asynchronous receiver/transmitter that converts data to be transmitted between serial communication and parallel communication. As a chip for converting parallel input signals into serial signals, UART is usually integrated into other communication interfaces. The UART cable can support BMS connection between PC and you can view the parameters through the PC screen.

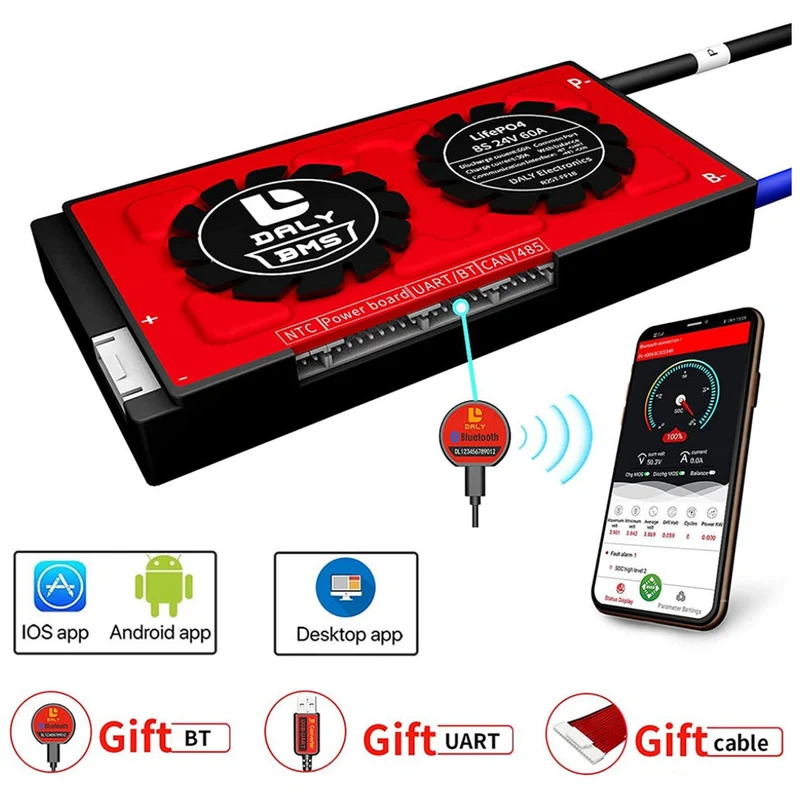

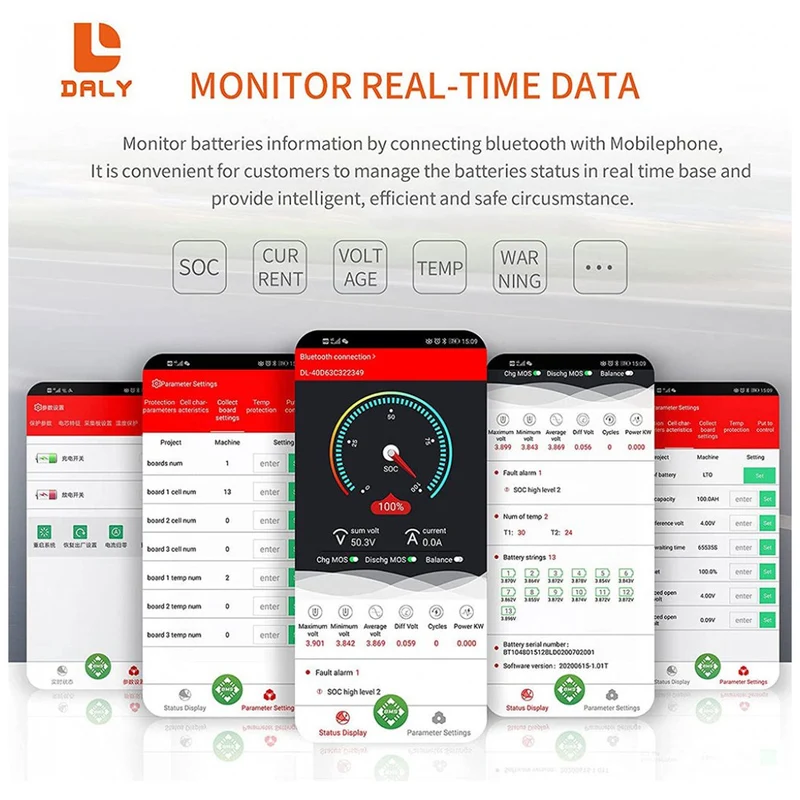

• Bluetooth Module: Available for connecting with Android and IOS apps and checking battery status in real time via mobile phone.
