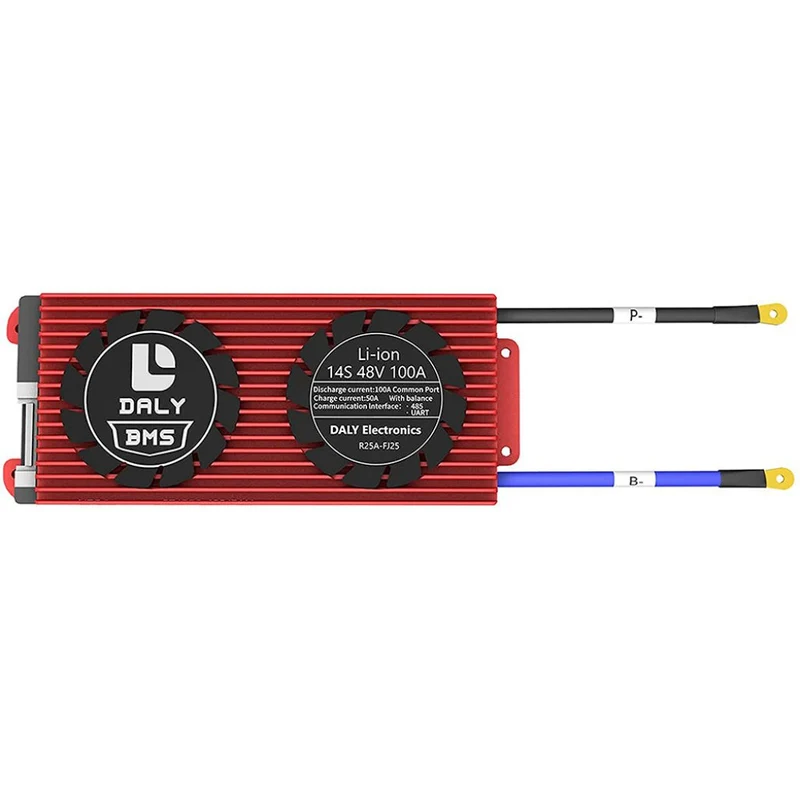

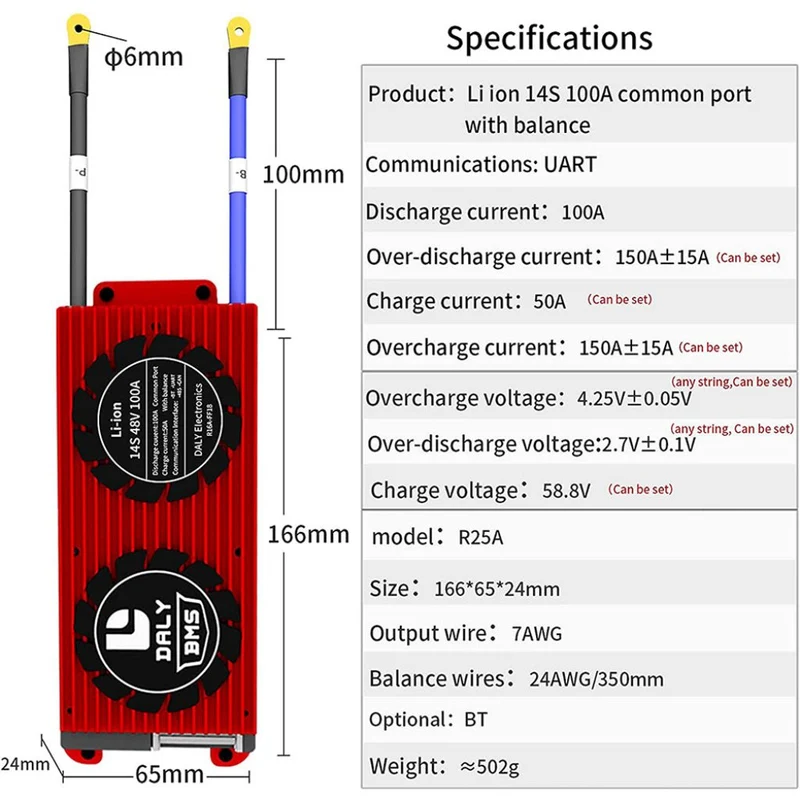

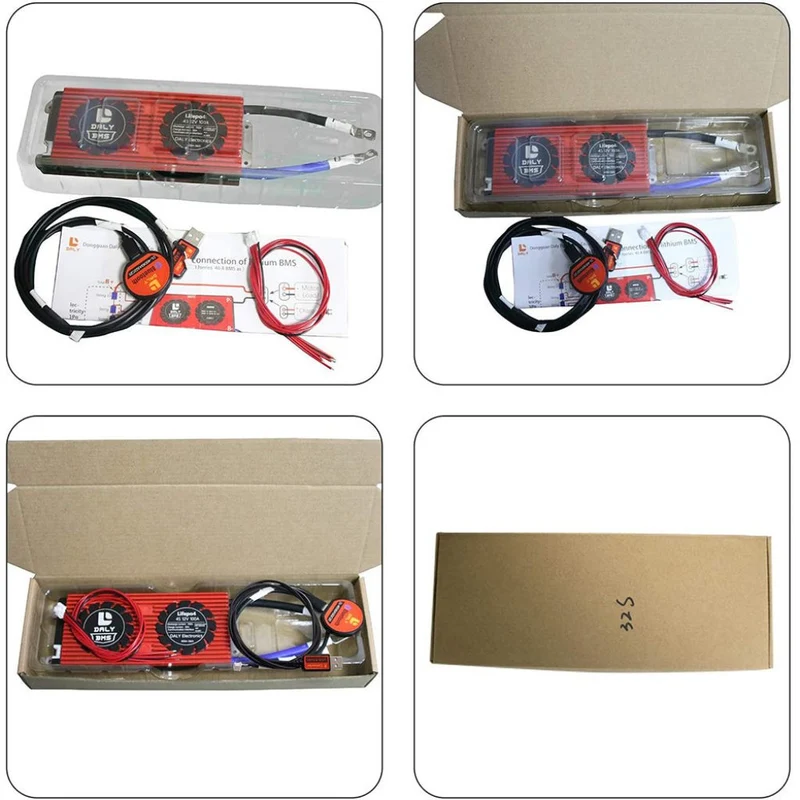

Daly Smart Bms Li-ion 14S 48V 100A Bluetooth BMS Board 24 65 166

Daly Smart Bms Li-ion 14S 48V 100A Bluetooth BMS Board 24 65 166

Product Description：

• For our smart bms, when the first use, need to activate first, then B- P conductive, BMS can work well.
• Method ①: buy the power board and There is an activation switch on the board and click the button.

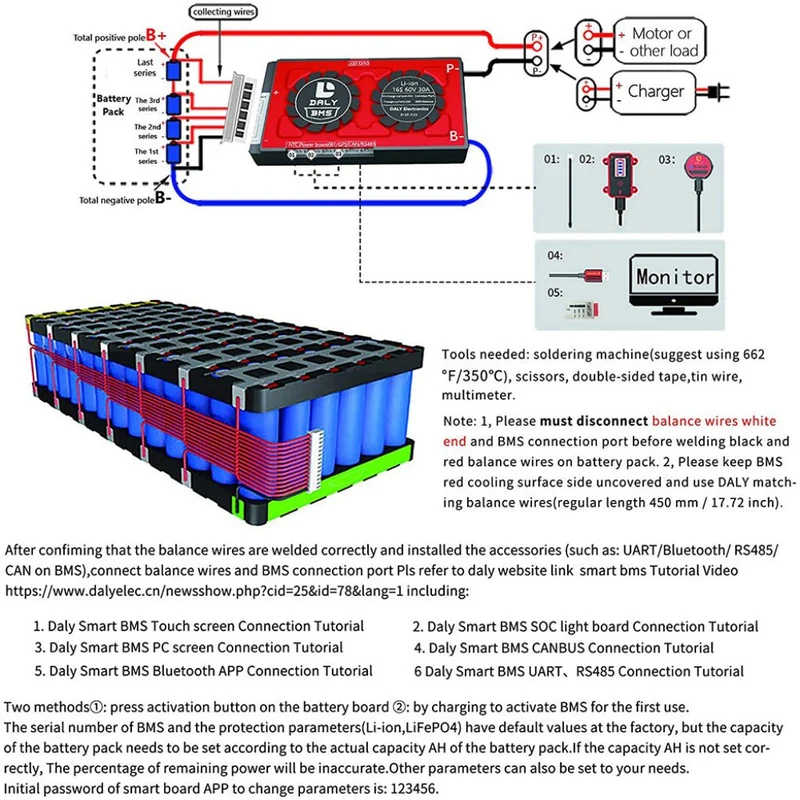

• Method ②: charge activation, B line must be the total negative pole of the battery pack, when
• 3S ~ 5S, J series (10J, 16J ) BMS only can be activated by this way.
• Touch screen LCD and bluetooth function will not work/exist at the same BMS! !!! Only can choose one of them.

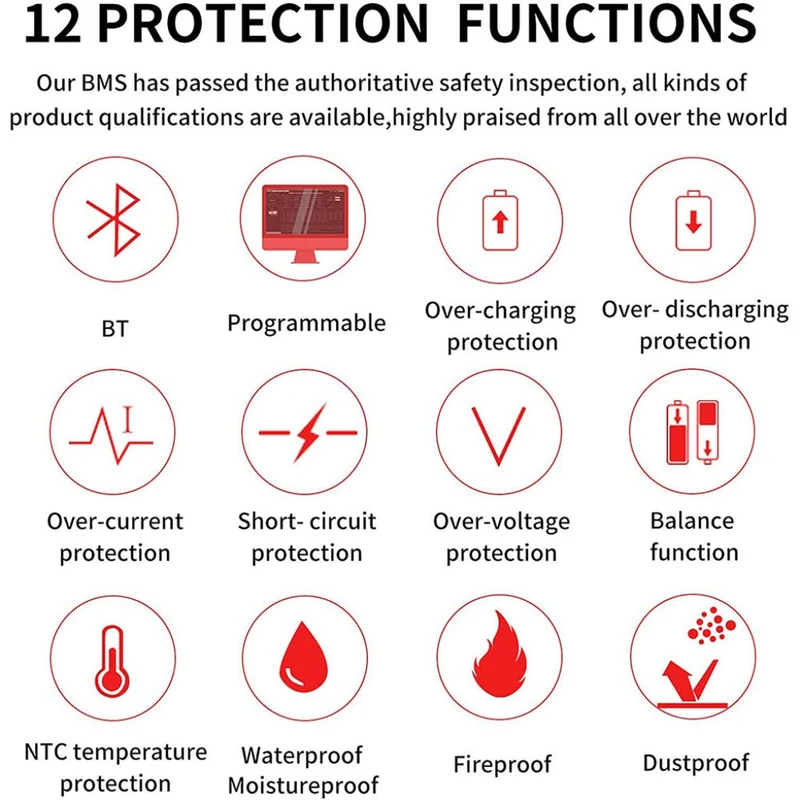

• Main functions description:
• Over-charge protection: Yes
• Over-discharge protection: Yes
• Over-current protection: Yes
• Temperature protection: Yes
• Disconnect protection: Yes
• Short circuit protection: Yes
• Short circuit protection recovery: Yes
• Balance function: Yes

Advantages:

• BMS was manufactured by high quality mos and IC imported. Keep your battery long cycle life time.
• Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
• Extreme low power consumption. The consumption of the whole device is less than 50uA.

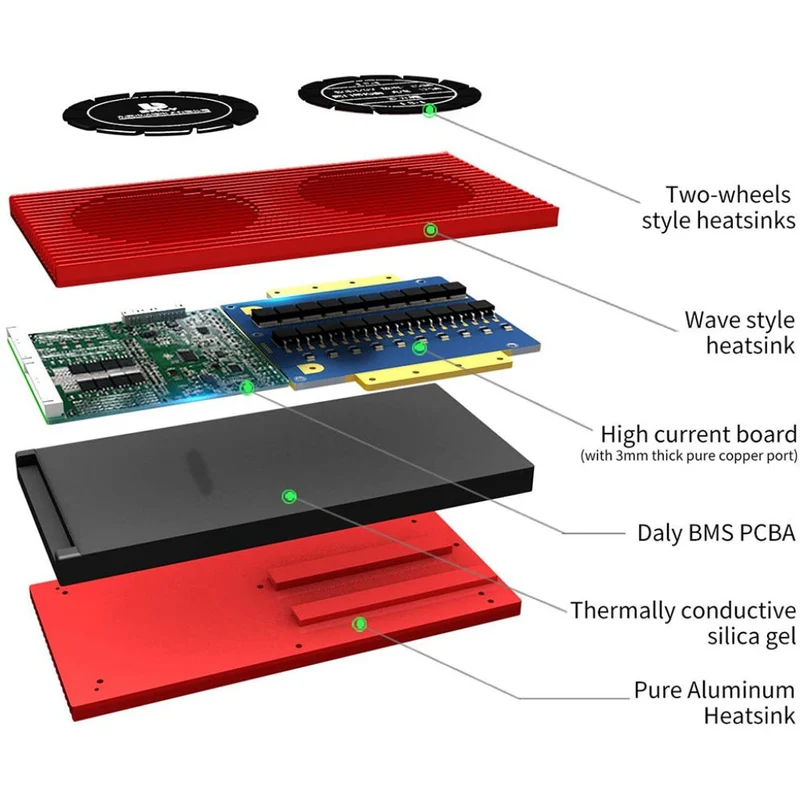

• PCB use high anti-corrosion, high water resistance, high impedance ESD compliant coating.

Function：

• UART : UART is Universal Asynchronous Receiver/Transmitter, it converts the data to be transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial signals, UART is usually integrated into other communication interfaces. UART cable can support connection bms between PC and you can view the parameters through PC screen.

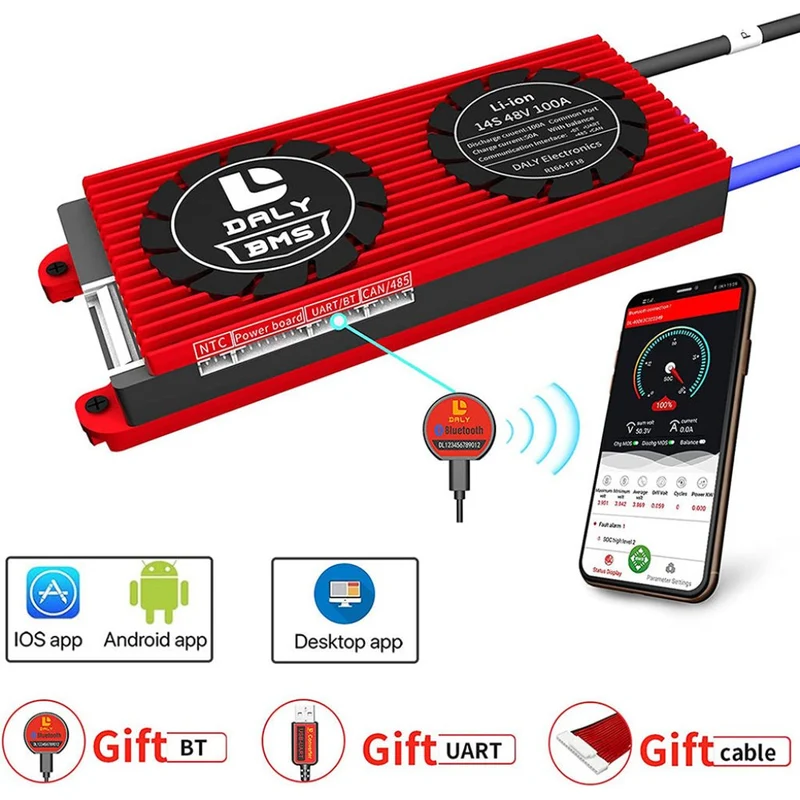

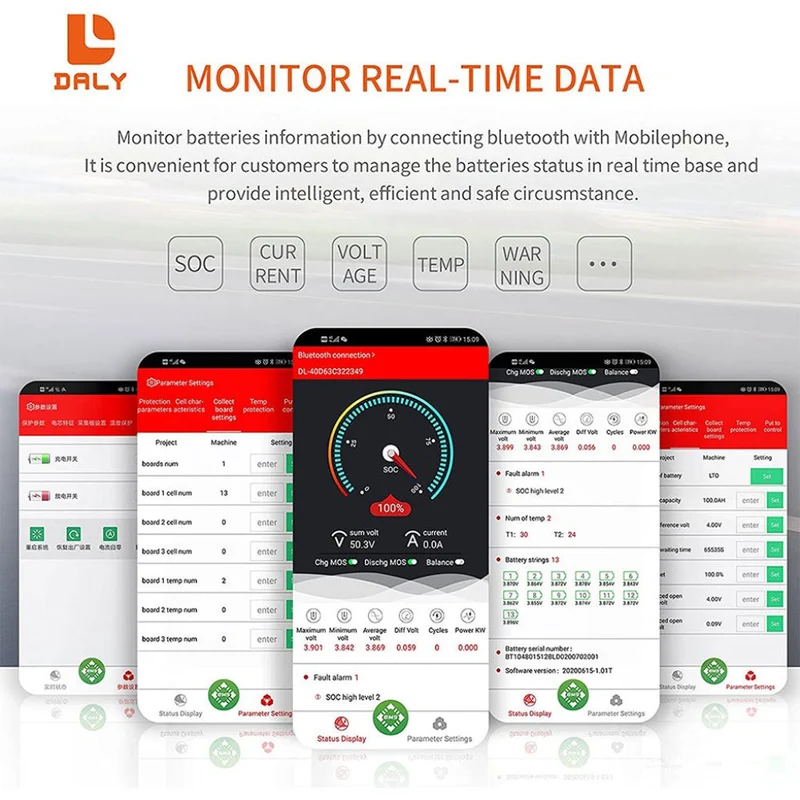

• Bluetooth module: available connect with Android and IOS app and can check the battery status in real time by cell phone.
