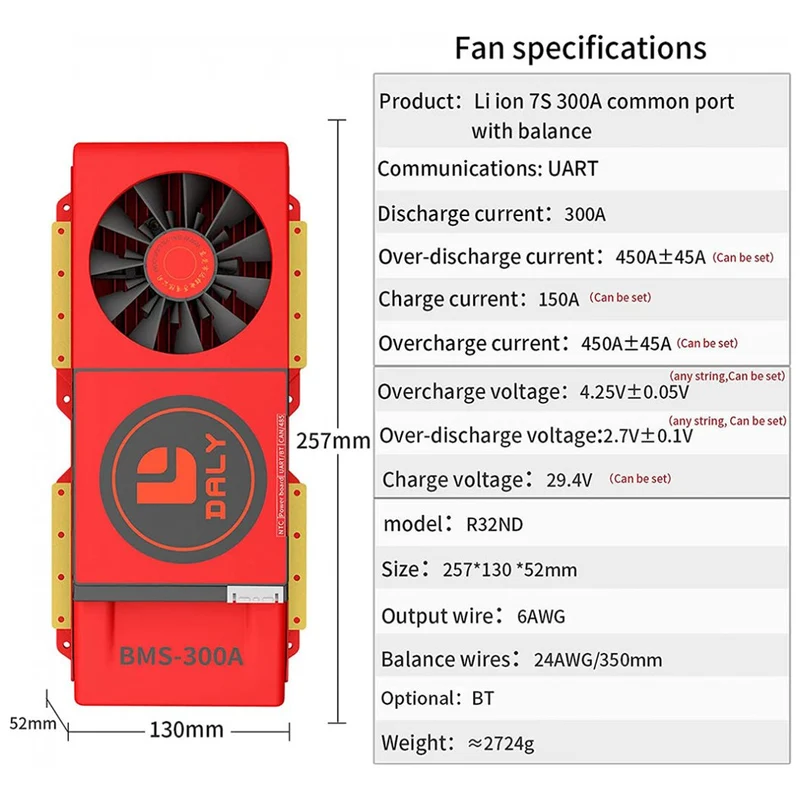

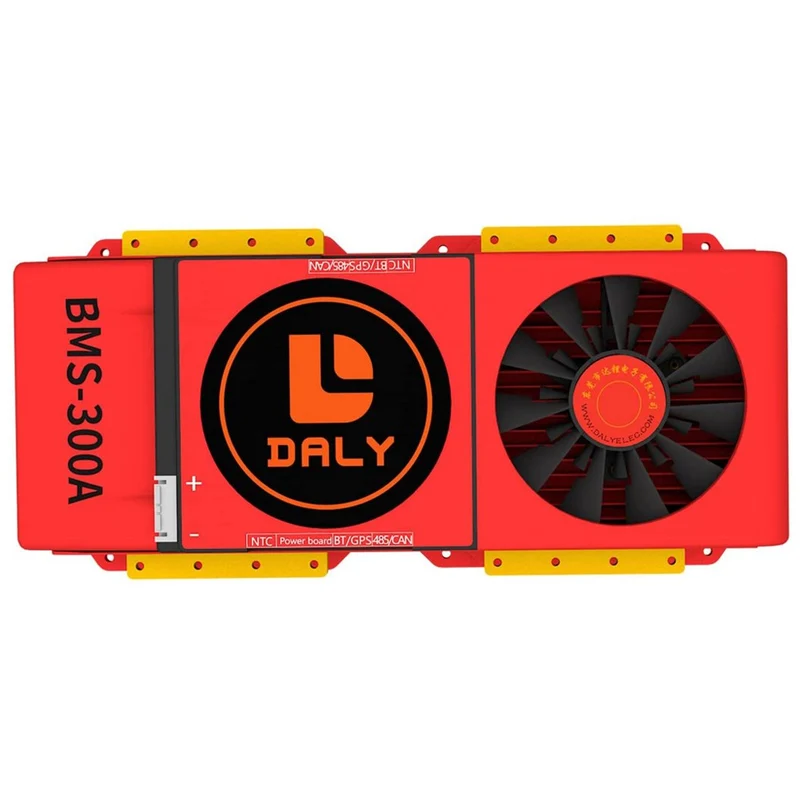

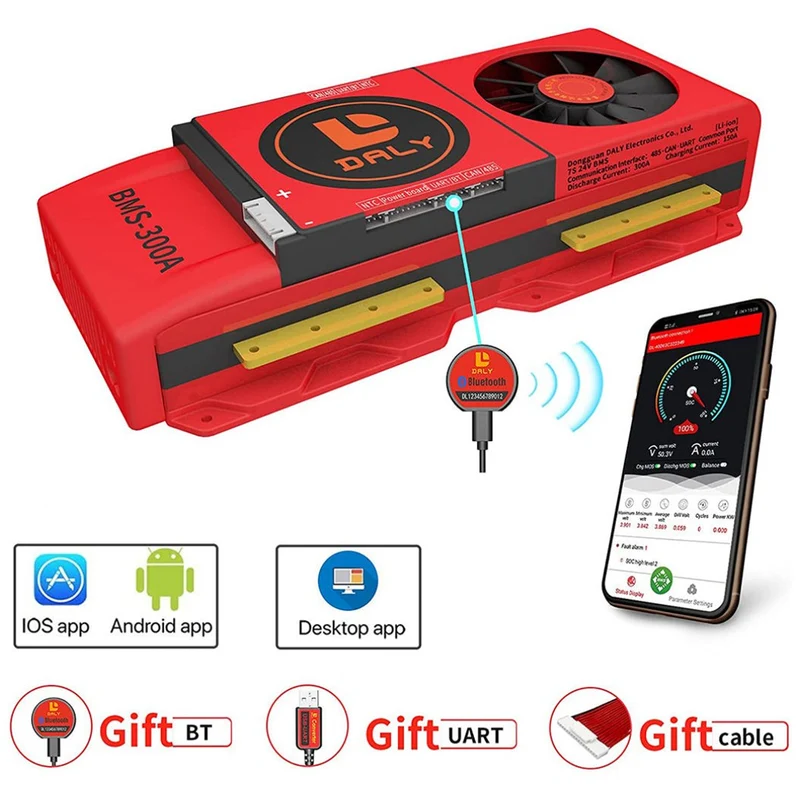

Daly Smart Bms Li-ion 7S 24V Li-Ion 300A with Bluetooth Fan 52130257

Daly smart bms Li-ion 7S 24V Li-Ion 300A with bluetooth fan 52130257

Product description:

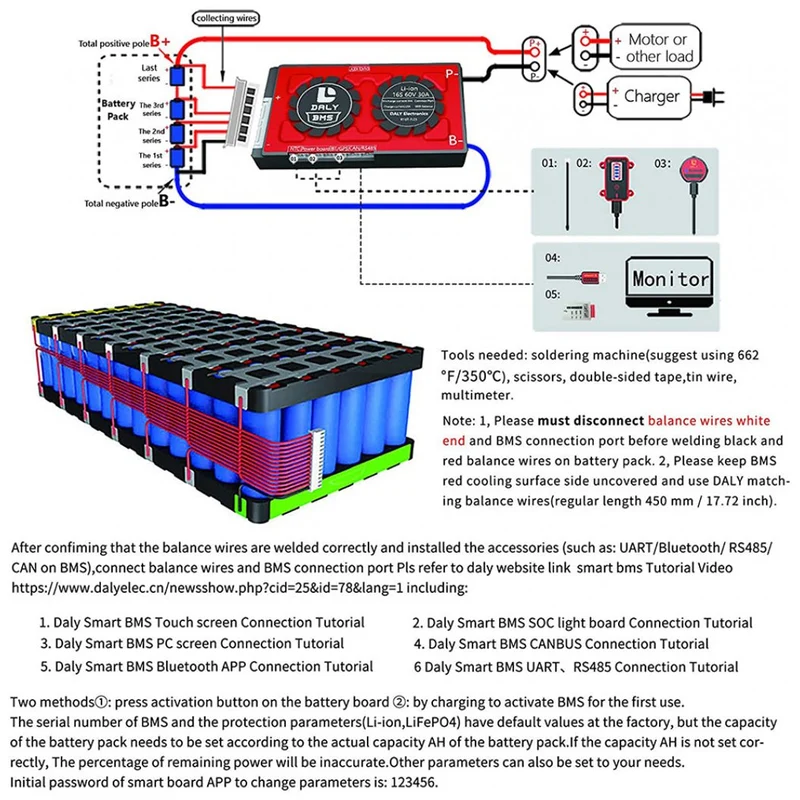

• For our smart bms, when the first use, need to activate first, then B- P conductive, BMS can work well.
• Method ①: buy the power board and there is an activation switch on the board and click the button.
• Method ②: charge activation, B-line must be the total negative pole of the battery pack when charging.
• Charge. 3S ~ 5S, J series (10J, 16J) BMS can only be activated in this way.
• LCD touch screen and bluetooth function do not work/exist on the same BMS! !!! Only one of them can be chosen.
• Description of main functions:
• Overload protection: Yes
• Overdischarge protection: Yes
• Overcurrent protection: Yes
• Temperature protection: Yes
• Disconnection protection: Yes
• Short circuit protection: Yes
• Short-circuit protection recovery: Yes
• Balancing function: Yes

Advantages:

1. The BMS was produced by imported high quality mos and IC. Maintain the battery with long life cycle.
2. Use high quality protection IC (A-level) from Japan's solution.
3. Extremely low power consumption. The consumption of the whole device is less than 50uA.
4. Using high corrosion and water resistant PCB, high impedance ESD compliant coating.



Function:

• UART: UART is a universal asynchronous receiver/transmitter that converts data to be transmitted between serial communication and parallel communication. As a chip to convert parallel input signals to serial signals, the UART is usually integrated into other communication interfaces. The UART cable can support bms connection between PCs, and you can view the parameters through the PC screen.

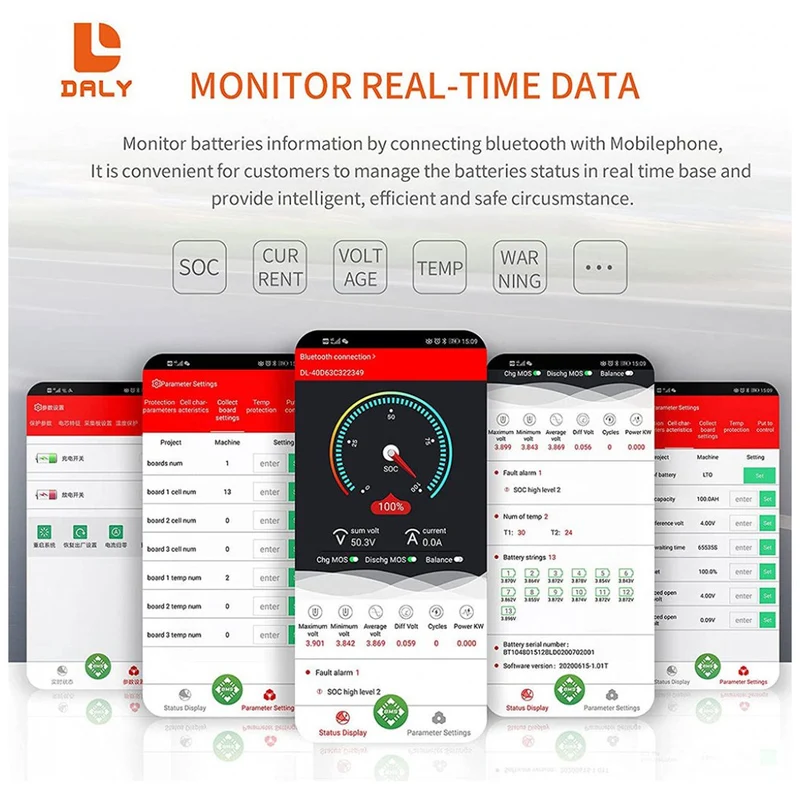

• Bluetooth module: available for connection with Android and IOS apps and to check battery status in real time via cell phone.
