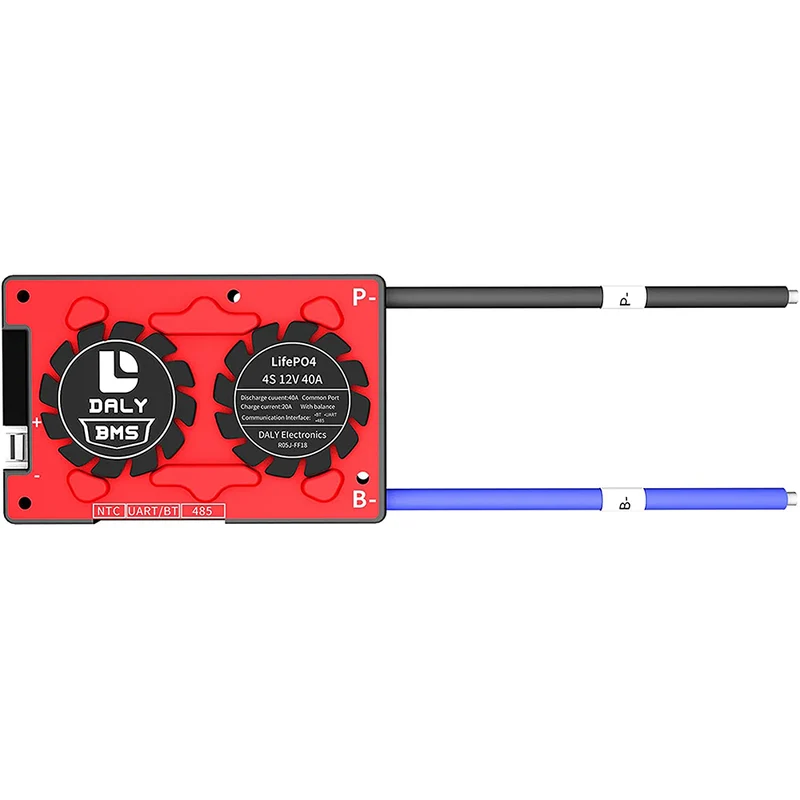

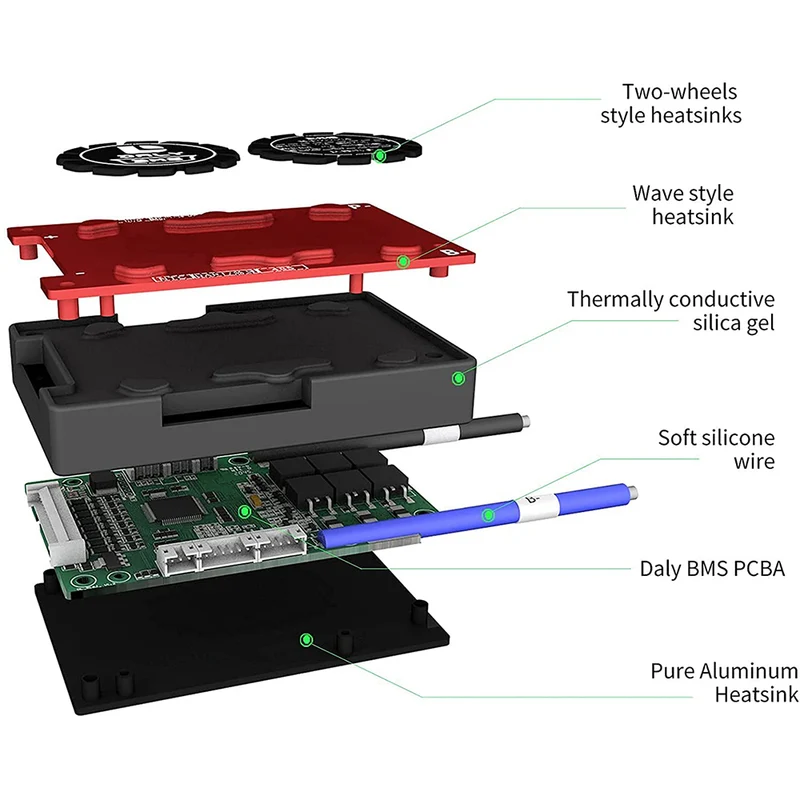

Daly smart bms Lifepo4 4S 12V 40A bluetooth BMS board 18 66 128

Daly smart bms Lifepo4 4S 12V 40A bluetooth BMS board  18 66 128

Daly bms Lifepo4 4S 12V 30A	Daly bms Lifepo4 4S 12V 40A	Daly bms Lifepo4 4S 12V 60A	Daly bms Lifepo4 4S 12V 80A
Daly bms Lifepo4 4S 12V 100A	Daly bms Lifepo4 4S 12V 100A FAN	Daly bms Lifepo4 4S 12V 120A	Daly bms Lifepo4 4S 12V 120A FAN
Daly bms Lifepo4 4S 12V 150A	Daly bms Lifepo4 4S 12V 150A FAN	Daly bms Lifepo4 4S 12V 200A FAN	Daly bms Lifepo4 4S 12V 250A
Daly bms Lifepo4 4S 12V 250A FAN	Daly bms Lifepo4 4S 12V 300A FAN	Daly bms Lifepo4 4S 12V 400A FAN	Daly bms Lifepo4 4S 12V 500A FAN

Product description:

• For our smart bms, when the first use, need to activate first, then B-P-conductive, BMS can work well.
• Method ①: buy the power board and there is an activation switch on the board and click the button.

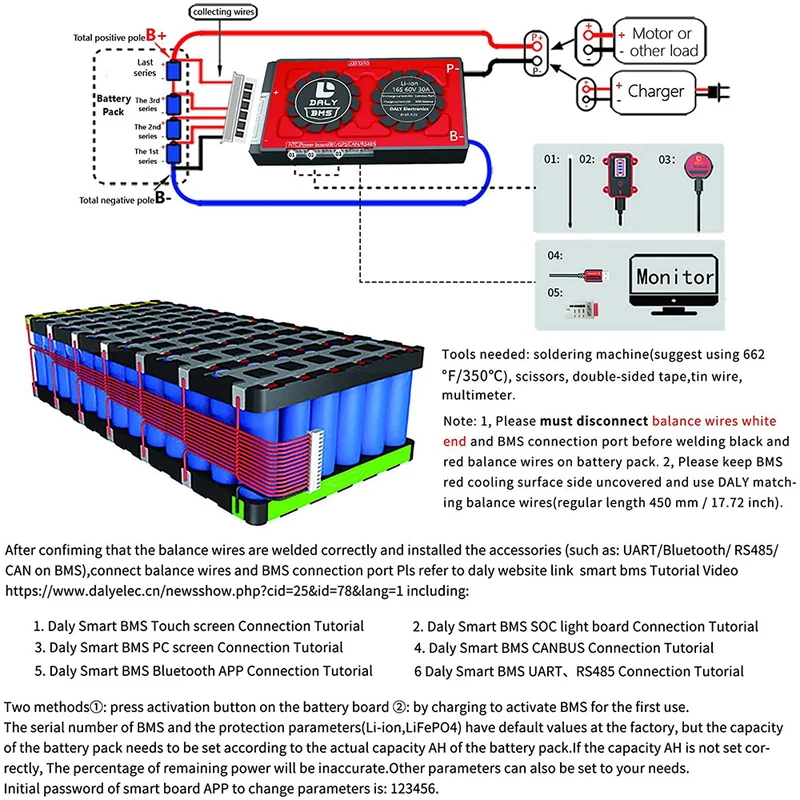

• Method ②: Charge activation, B-Line must be the total negative pole of the battery pack when
• 3S ~ 5S, J series (10J, 16J) BMS only can be activated by this way.
• Touchable screen LCD and bluetooth function won't be working / exist at the same BMS! !!! You can only choose one of them.
• Main Features Description:
• Over-charge protection: Yes
• Over-discharge protection: Yes
• Over-current protection: Yes
• Temperature protection: Yes
• Disconnect protection: Yes
• Short circuit protection: Yes
• Short circuit protect recover: Yes
• Balance function: yes

Benefits:

1. BMS was made by high quality Mos and IC imported. Keep your battery long cycle life time.
2. Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
3. Extreme low power consumption. The consumption of the whole device is less than 50uA.
4. PCB use high anti-corrosion, high water resistance, high impedance ESD compliant plating.

Function:

• UART: UART is Universal Asynchronous Receiver / Transmitter, it transforms the data transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial signals, UART is usually integrated into other communication interfaces. UART cable can support connection bms between PC and you can set the parameters through PC screen.

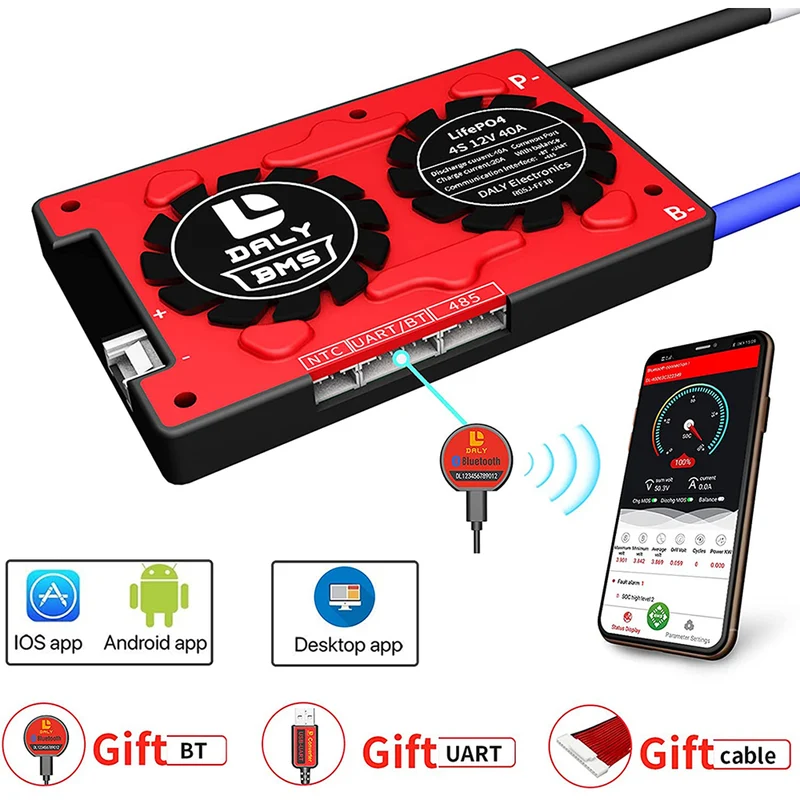

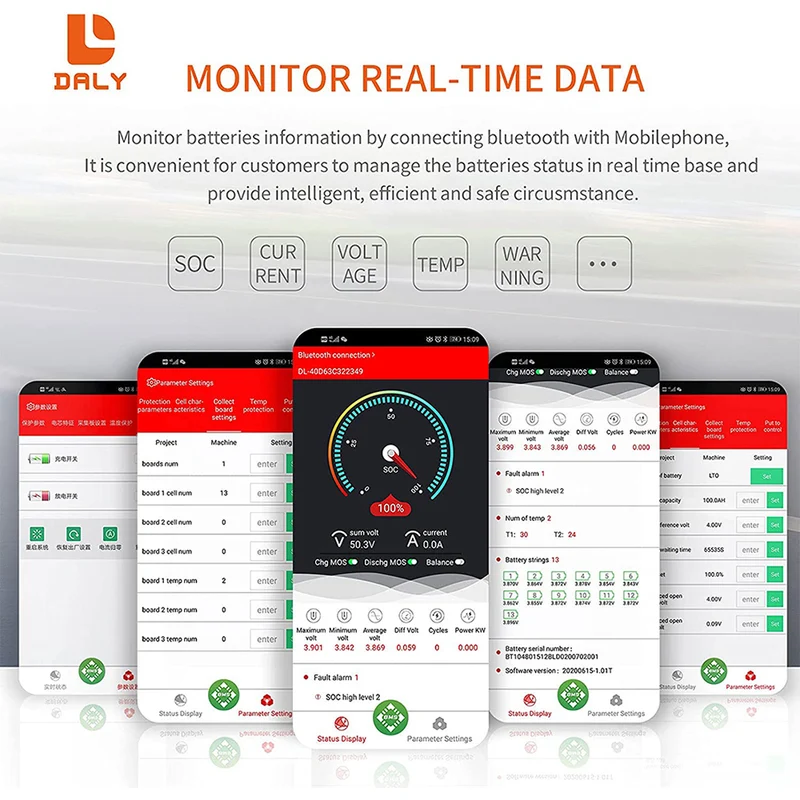

• Bluetooth module: available to connect with Android and IOS App and can check the battery status in real time through mobile phone.
