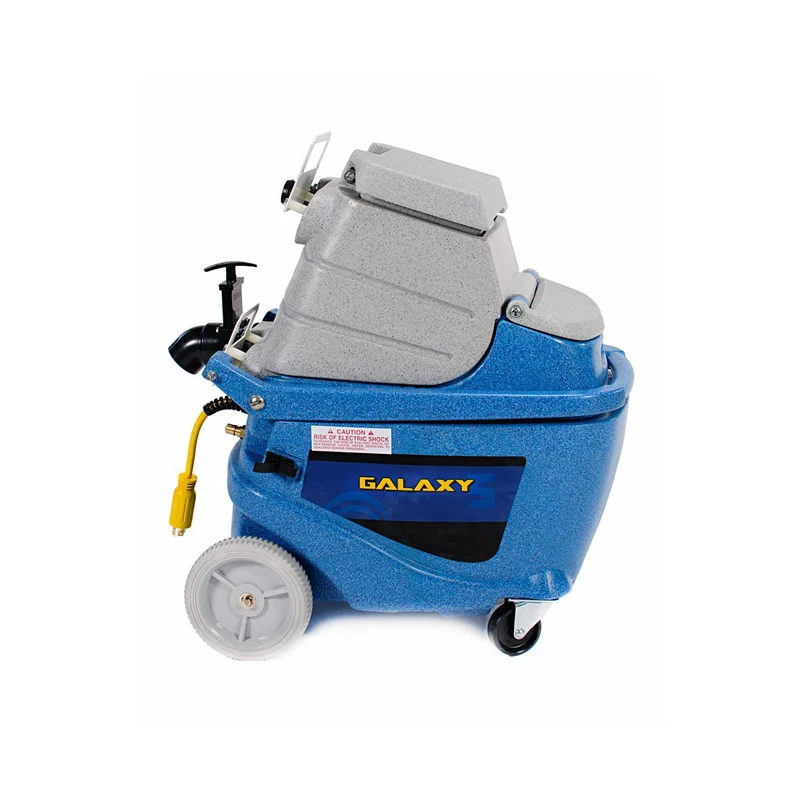

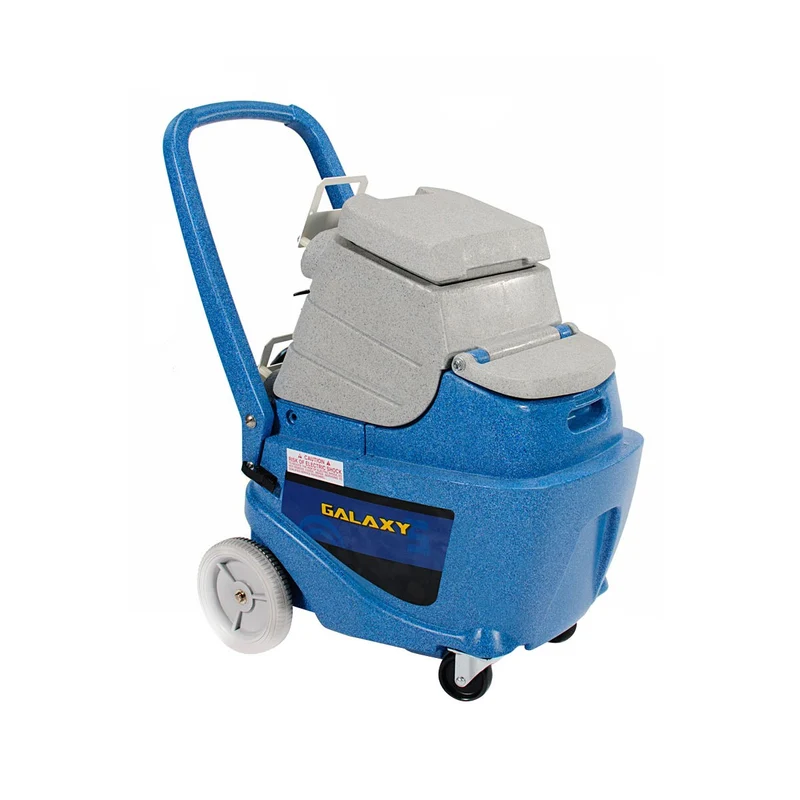

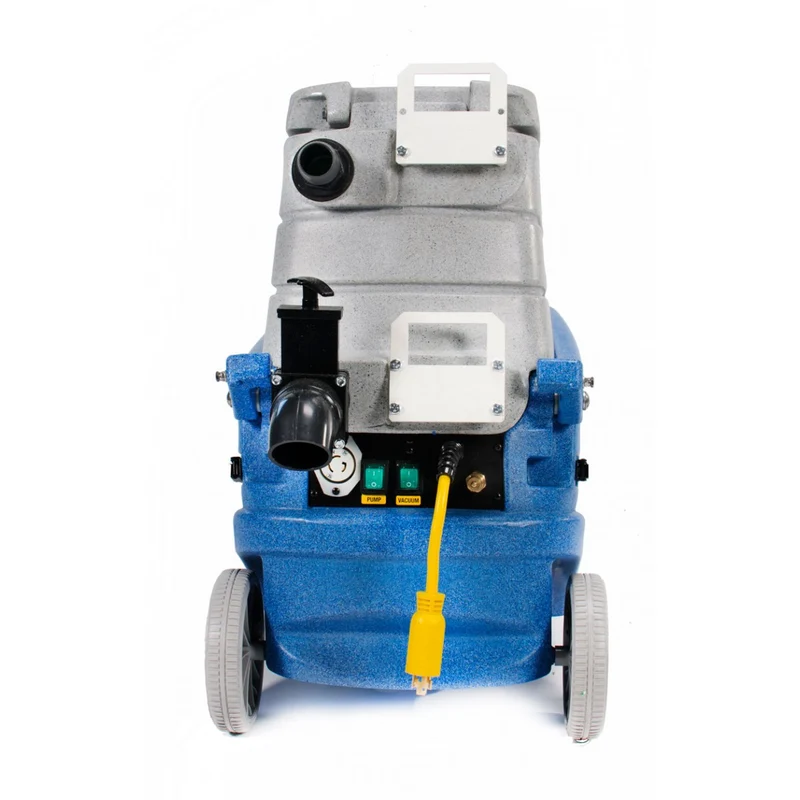

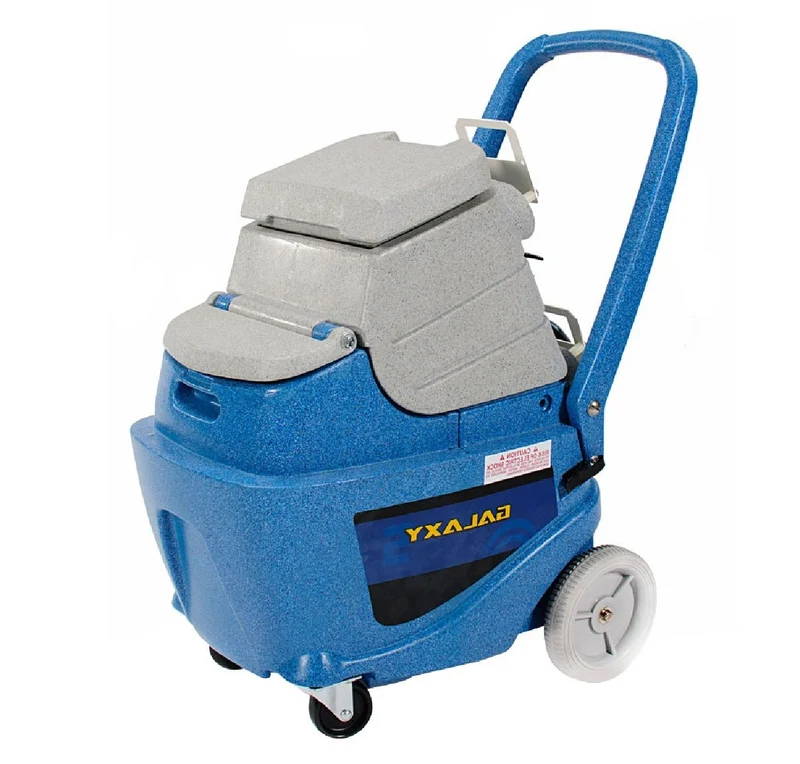

EDIC 500BX-HR Carpet Extractor

The exclusive Galaxy™ 5 portable carpet extractor line from EDIC is powerful, compact, and very easy to transport from one place to another. The ED508BXHR extractor is equipped with a 3-stage motor, a pump capable of delivering 120 PSI of pressure, and dual tanks. Designed to accommodate an external water heater, the unit comes with four wheels and a handle; the front wheels swivel, making the device extremely maneuverable. The EDIC Galaxy™ 5 is the obvious choice for automotive maintenance and small tasks.

Features:

• Waterproof cavity keeps the motor dry, increasing its lifespan.
• Easy to open for quick maintenance.
• The motor support and cooler also help extend the motor's life.
• All optional accessories can be attached to the back for fast cleaning of furniture, stairs, etc.
• Built-in silencer for quieter operation.
• Adjustable handle for easy transport and convenient storage.
• Optional: 2000-watt stainless steel water heater.

Included:

• Swiveling front wheels: 6.4 cm (2.5")
• Non-marking rear wheels: 17.8 cm (7")
• Solution tank: 19 L (5 gal)
• Recovery tank: 15 L (4 gal)

Technical Specifications:

Title	Description
Solution tank capacity	19 L (5 gal)
Recovery tank capacity	15 L (4 gal)
PSI	120
Motor	3-stage
Sealed suction (Water lift)	136"
Material	Polyethylene
Base	3.2 cm (1/4") aluminum
Rear wheels	17.8 cm (7") non-marking
Front wheels	6.4 cm (2.5") swiveling
Power cord	7.6 m (25') detachable
Machine dimensions	Height: 71.1 cm (28"), Length: 62.2 cm (24.5"), Width: 40.6 cm (16")
Shipping dimensions	Height: 76.2 cm (30"), Length: 64.8 cm (25.5"), Width: 43.2 cm (17")
Machine weight	25.9 kg (57 lbs)
Shipping weight	29.9 kg (65 lbs)
Warranty	5 years
