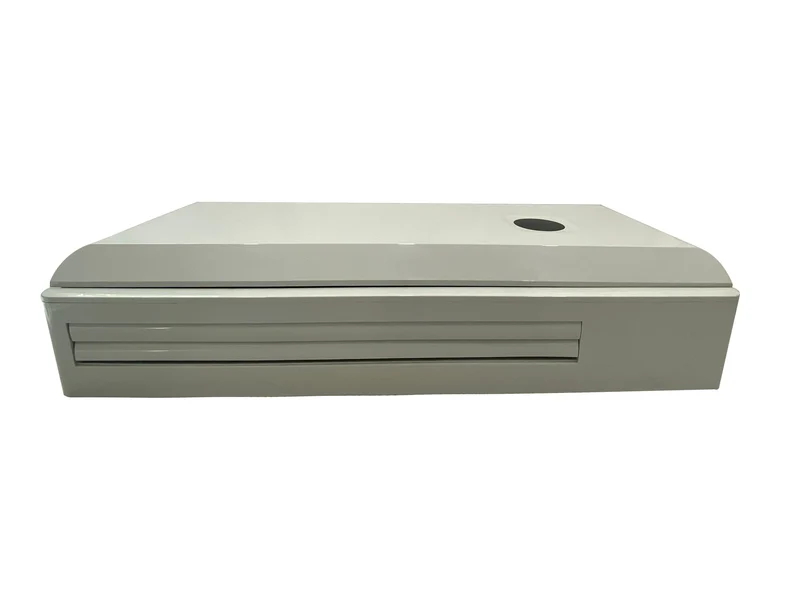

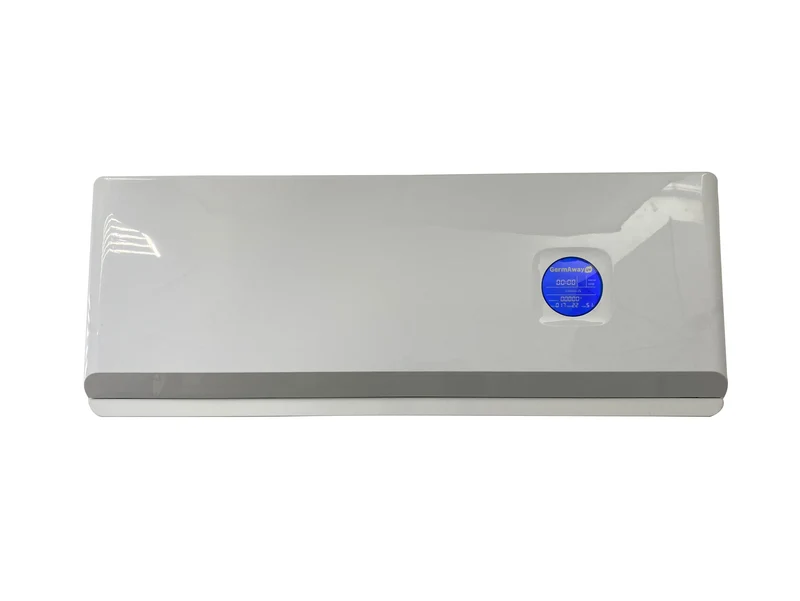

GermAwayUV Wall-Mounted High Capacity Air Cleaner and Sanitizer

Minimize the spread of harmful microorganisms in occupied rooms with the GermAwayUV Wall-Mounted High Capacity Air Cleaner and Sanitizer. Engineered for reliable performance, this unit provides continuous air purification using advanced UV-C technology to help create a cleaner and safer indoor environment.

Featuring a streamlined design, the system uses high-output ultraviolet sterilization along with a shell, wind wheel, and motor assembly. By harnessing the power of UV-C radiation, it effectively targets a wide range of microorganisms—including bacteria, viruses, spores, and other pathogens—by disrupting their nucleic acids. This process breaks DNA bonds and strands, preventing replication and ensuring thorough air disinfection.

Accurate UV Leakage
The unit maintains safe UV exposure levels with a UV leakage rating of 5 µW/cm².

Lamp Configuration
This model includes six (6) UV-C bulbs in total:

• Four bulbs run continuously during normal operation.
• Two additional bulbs are automatically engaged when Boost Mode is activated, providing increased air turnover—an especially valuable function for high-traffic areas or environments with persistent odors that require intensified air treatment.

Replacement Bulbs
The correct replacement lamp for this unit is a 35-watt UV-C bulb.

Features

Multi-Method Purification
Uses a combination of air purification techniques, including a proprietary low-resistance, high-ventilation composite filter, to effectively reduce airborne dust particles.

Dynamic Air Disinfection
Continuously disinfects the air in the environment, supporting safe and comfortable coexistence between people and technology.

Advanced Filtration Technology
The composite filter incorporates polymer materials and high-quality activated carbon powder to help remove harmful substances such as benzene and formaldehyde. High-intensity UV-C irradiation catalyzes oxidation and decomposition of pollutants for deodorizing and antibacterial effects.

Negative Ion Generation
A built-in negative ion generator helps neutralize viruses, bacteria, smoke, and dust particles, contributing to a fresher indoor atmosphere by precipitating airborne contaminants.

Optimized Airflow Design
Engineered with a turbulence working mode similar to clean-room standards, ensuring efficient air circulation and consistent purification performance.

Integrated UV-C Lamp Placement
UV-C lamps are positioned on the windward side of the composite filter to instantly treat incoming airflow and prevent microbial growth within the filtration system.

Applications

Our air disinfection solutions are widely used across industries and environments, including:

• Hospitals
• Pharmaceutical facilities
• Food processing plants
• Hospitality establishments
• Educational institutions
• Food service and catering
• Public recreational venues
• Corporate environments
• Dining facilities
• Households
• Vehicles
• Mortuaries

These versatile systems are designed to meet the air disinfection needs of each setting, helping maintain cleaner and safer spaces for all occupants.

Main Structure and Working Principle

Technical Specifications:

Parameter	Value
External UV Leakage	5 µW/cm²
Ozone Concentration	0.14 mg/m³
Noise	55 dB
Style	Wall-mounted
Disinfection Space	3,531.47 ft³
Dimensions	38 x 15 x 8 in
Weight	35 lb
Rated Power	220 W
Power Supply	110 V~
Frequency	50 Hz ± 1 Hz
Ambient Temperature	23°F – 104°F
Relative Humidity	60% – 90%
Atmospheric Pressure	800 hPa – 1060 hPa
Bulb Lifespan	8,000 h

User Manual
