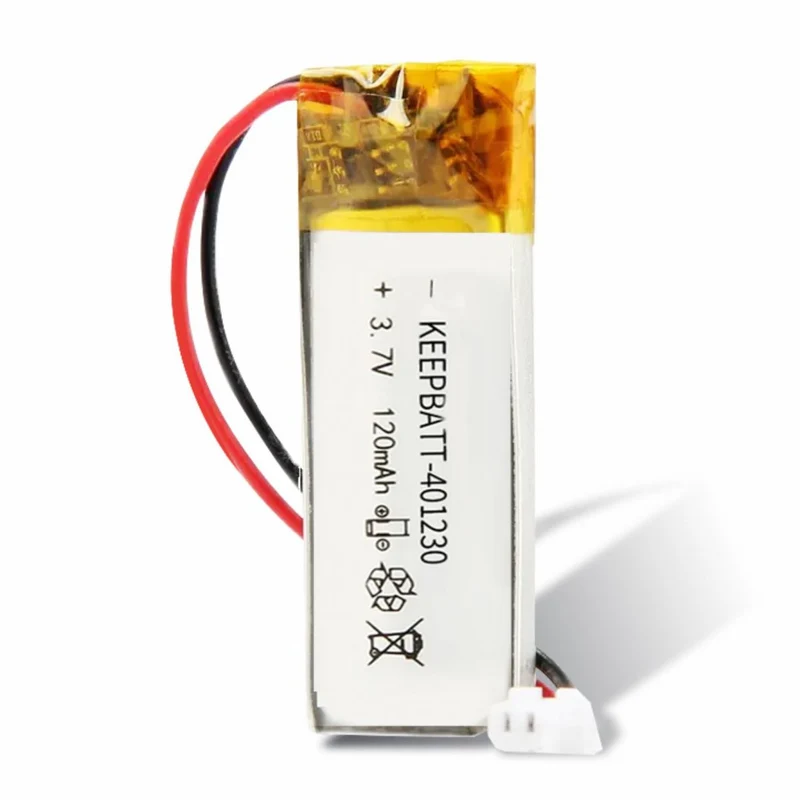

KB-LP401230 3.7V 120mAh Lipo Battery 401230 125mAh lipo polymer battery

KB-LP401230 3.7V 120mAh Lipo Battery 401230 125mAh lipo polymer battery

Enhanced Safety Features: The LP401230 LiPo battery includes multiple protections such as overcharge, overdischarge, short circuit, overvoltage, and overcurrent protection, ensuring safe and reliable operation for all connected devices.

Wide Application Compatibility: Designed for Bluetooth headsets and other portable devices, this battery is customizable to fit different sizes and capacities, such as 80mAh, 130mAh, and 250mAh options, making it versatile for various electronic devices.

Durability and High Standards: The battery operates efficiently within a wide temperature range (-20°C to 60°C) and supports up to 500 cycles at 80% DOD. Certified by KC, CE, and RoHS, it guarantees long-lasting performance and compliance with international quality standards.

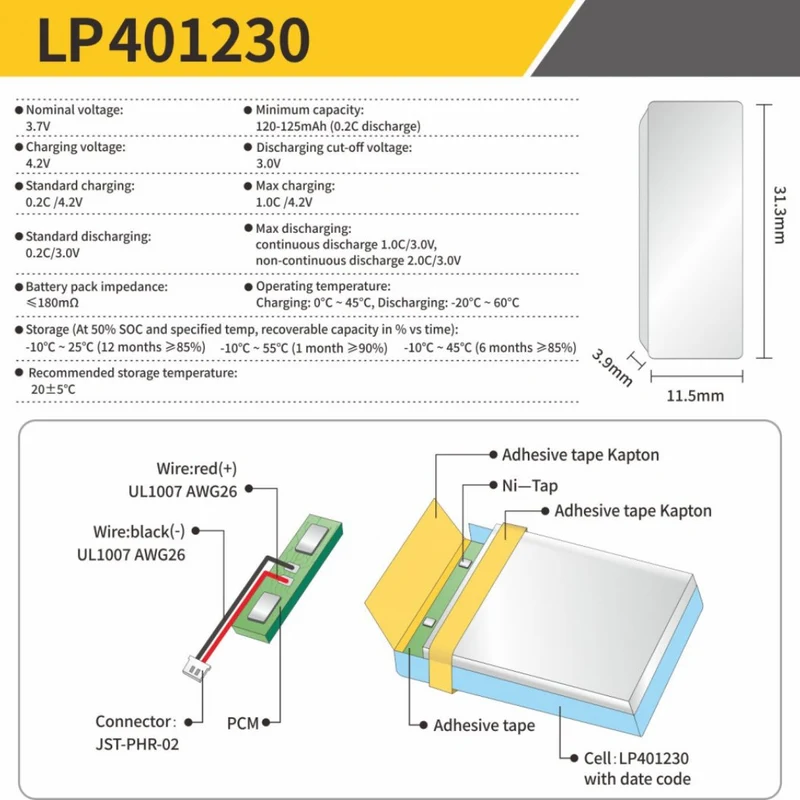

Specification

Battery model: KB-LP401230

Nominal voltage: 3.7V

Minimum capacity: 120-125mAh (0.2C discharge)

Charging voltage: 4.2V

Discharging cut-off voltage: 3.0V

Standard charging: 0.2C /4.2V

Max charging: 1.0C /4.2V

Standard discharging: 0.2C/3.0V

Max discharging continuous discharge: 1.0C/3.0V

Non-continuous discharge: 2.0C/3.0V

Battery pack impedance: ≤180mΩ

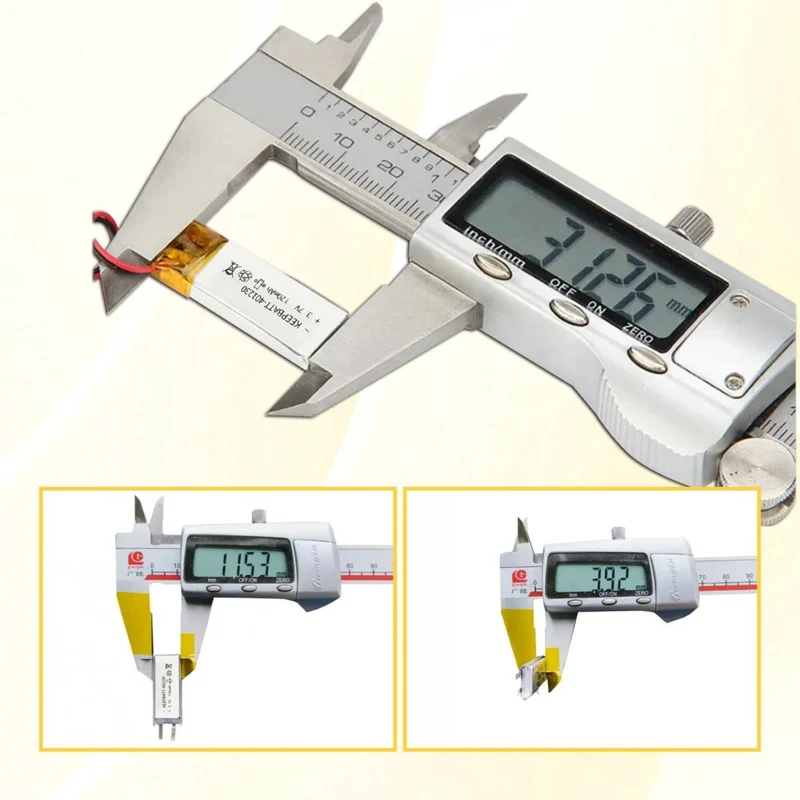

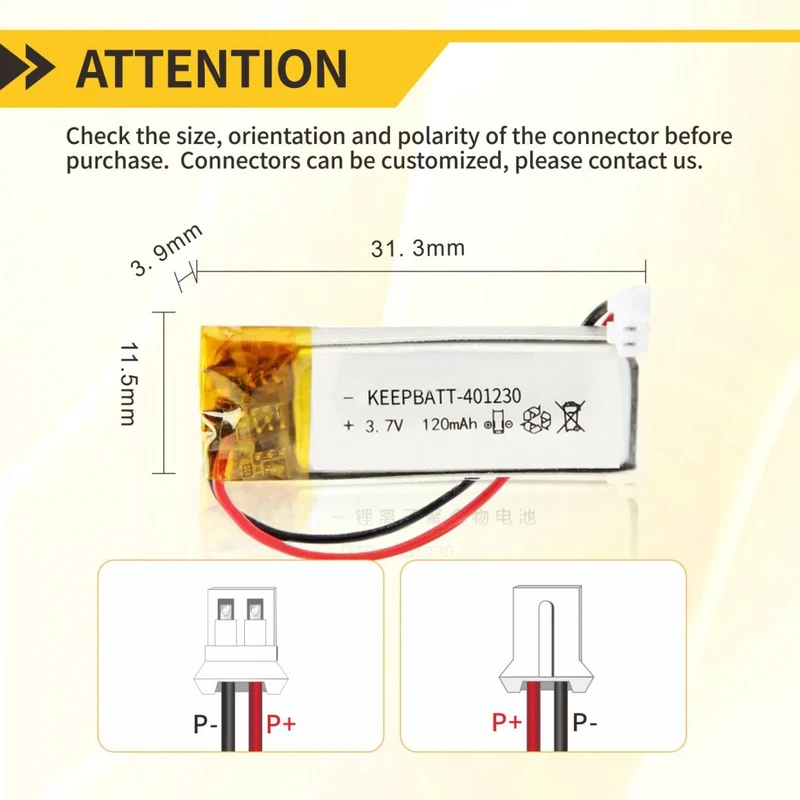

Size: 31.3x 3.9x 11.5mm

Weight: 15g

Operating temperature Charging: 0°C ~ 45°C

Discharging: -20°C ~60°C

Storage: 20±5℃

Application: Bluetooth headsets and other portable devices

Package include

1* 401230 3.7V 120mAh Lipo Battery

Warnings

Do not immerse the battery in water.

Do not mix new batteries with used batteries.

Do not disassemble, throw into fire, heat or short circuit.

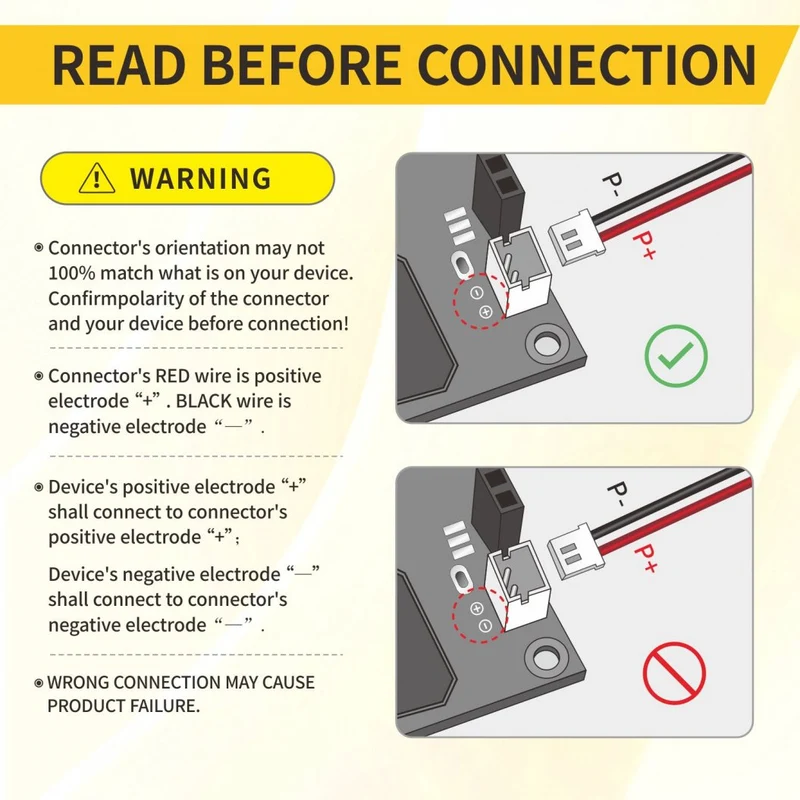

Do not insert batteries with (+) and (-) terminals reversed.

Do not insert the battery into a charger or device with the terminals incorrectly connected.
