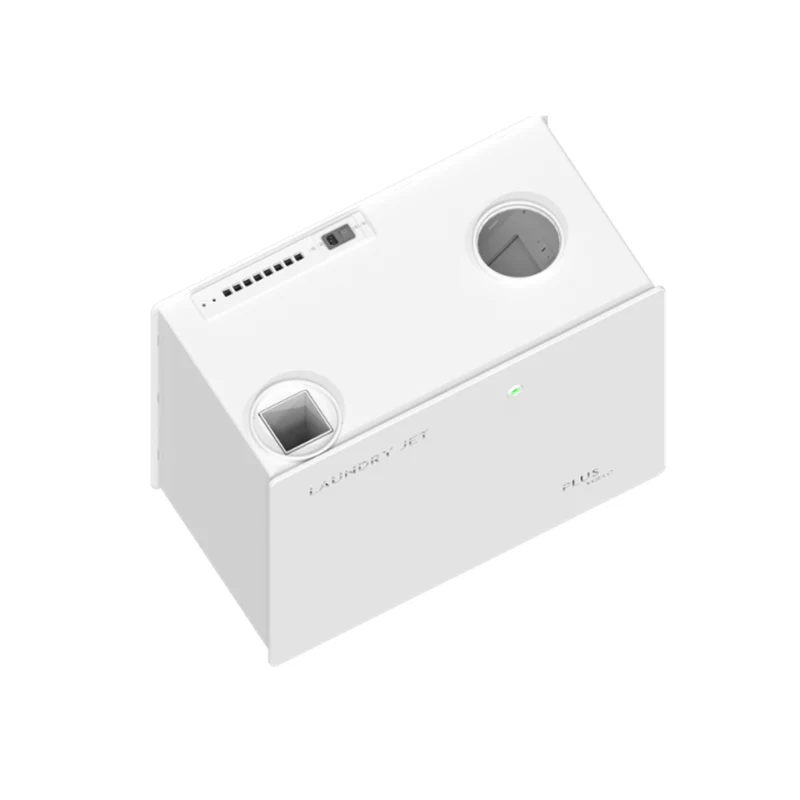

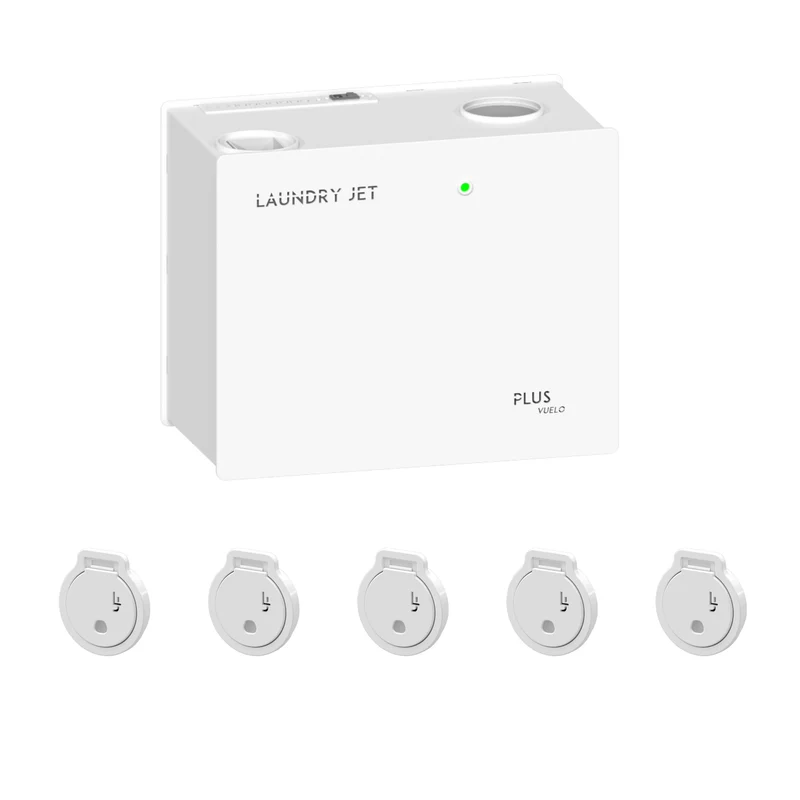

Laundry jet plus vuelo with five Lift Doors

The Laundry Jet Plus Vuelo integrates seamlessly into any custom laundry room design and is our top of the range model in terms of custom style, capacity and number of ports. The Plus Vuelo has many upgrades from its predecessor including power, speed, accessibility, capacity, internal cabling, vent position and PCB and installs inside your own custom cabinetry to maintain the overall aesthetic in your laundry room. The Plus Vuelo can utilize all styles of Cat 5/6 connector Laundry Jet Ports (manual slide to open and close or button activated) and has an automated cycle which allows the user to insert the clothes, towels, or bedding and walk away leaving it immediately ready to be used again. The Laundry Jet Plus Vuelo is the highest capacity model and handles up to 8 different locations, at the highest speeds yet.

Features

• Wall Mounted Inside your Custom Cabinet
• Standard plug 110 v
• International option (220/240v)
• Auto emptying for continuous use
• Auto timer shut off. – 25 seconds
• Uses 6″ pipe (6.25” – 159 mm OD)
• Maximum number of ports 8
• Max distance from furthest port 200ft (62m)
• Compatible with Lift, iSlide and iTap Button Cat5/6 ports

Specifications

• Exhaust – vertical pipe , no diffuser
• Airflow 50-65 MPH
• Return Unit compatible
• Noise approx. 82 Decibels( similar to a vacuum cleaner)

• The wiring is cat 5 OR 6 and newer with RJ45 connectors
• Weight Unit 70lbs-32kg,  Blower Pod 40lbs- 17kg
• Total mounted weight 110lbs – 49kg
