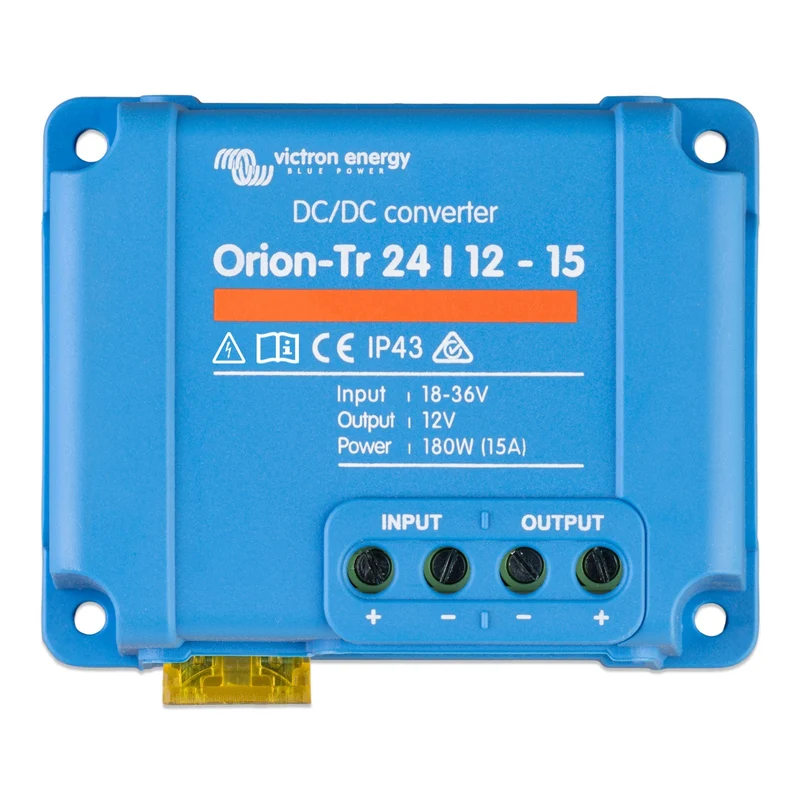

ORI241215200R Orion-Tr 24/12-15 (180W) DC-DC converter

Victron Orion-Tr 24/12-15A Non-Isolated DC-DC Converter

Power your 12V loads and accessories from a 24V battery bank with efficient, reliable DC-DC conversion. The Victron Orion-Tr 24/12-15A delivers 180W of clean 12V power — stepping down from 24V at 15A with high efficiency and a compact footprint. Whether you're running 12V accessories in a 24V marine system, powering 12V lighting in an RV, or integrating 12V equipment into a 24V off-grid installation, this converter handles it quietly and dependably.

Key Features

• 180W continuous output — 24V input to 12V output at 15A
• Non-isolated design — efficient power conversion for shared-ground systems
• Wide input voltage range — compatible with 24V lead-acid and lithium battery systems
• Adjustable output voltage — fine-tune to match your 12V load requirements
• High efficiency — up to 93%, minimal heat generation
• Compact, robust housing — easy to install in tight spaces
• Remote on/off — simple integration with system controllers

Specifications

• Input voltage: 15–35V DC
• Output voltage: 12V (adjustable)
• Output current: 15A
• Output power: 180W
• Isolation: Non-isolated
• Efficiency: Up to 93%
• Operating temperature: -40°C to +60°C

Ideal For

• Powering 12V accessories from 24V marine and RV systems
• Off-grid vehicles with 24V battery banks and 12V loads
• Commercial vehicles with 24V systems requiring 12V auxiliary power
• Solar systems with 24V battery banks and 12V equipment
