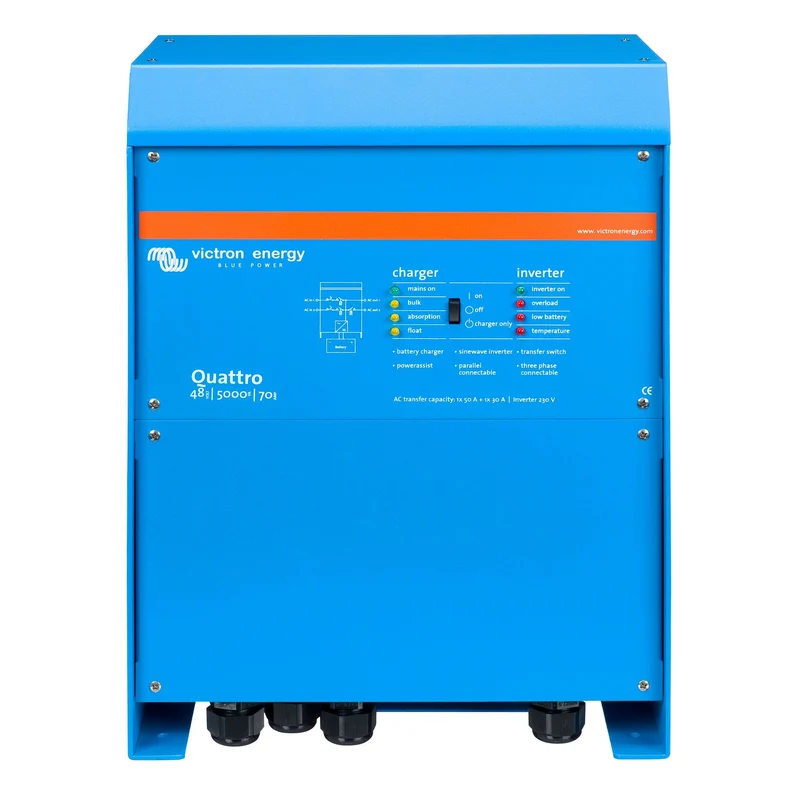

QUA482501102 Quattro 48/5000/70-100/100 120V VE.Bus (UL 1741 & CSA C22.2) (4000W)

938,29 €1 526,54 €38% OFF
Retours sous 30 joursGarantie 1 an
Livraison estimée: 8 octobre - 10 octobre.
938,29 €
Quantité
Moyens de paiement
Détails du produit

Victron Quattro 48/5000/70-100/100 120V VE.Bus — 4000W Inverter/Charger

The Victron Quattro 48/5000/70 brings the legendary dual-AC-input architecture of the Quattro series to mid-range power systems. With 5,000VA of continuous inverter output (4,000W), a 70A battery charger, and seamless automatic switching between two AC sources — grid and generator — this unit is the backbone of reliable hybrid and off-grid power systems. UL 1741 and CSA C22.2 certified for North American installations, it's equally at home in a solar cabin, a marine vessel, or a commercial backup system.

Key Features

  • 5,000VA / 4,000W continuous inverter output — handles demanding loads reliably
  • Dual AC inputs — automatically selects between two AC sources; the main output transfers to inverter operation in less than 20ms
  • 70A battery charger — adaptive multi-stage charging for 48V battery banks
  • PowerAssist technology — supplements shore/generator power to prevent overload
  • VE.Bus communication — supports parallel and three-phase configurations
  • UL 1741 & CSA C22.2 listed — certified for North American grid-tied and off-grid use
  • 48V battery system — compatible with lithium and lead-acid battery banks

Specifications

  • Inverter output: 5,000VA / 4,000W continuous
  • Input voltage: 120V AC
  • Battery voltage: 48V
  • Charger current: 70A
  • Maximum AC feed-through current: 2 × 100A
  • AC outputs: 2; auxiliary AC-out-2 is limited to 50A and disconnects during battery operation
  • Communication: VE.Bus
  • Certifications: UL 1741, CSA C22.2

Ideal For

  • Mid-size off-grid solar installations
  • Hybrid grid/generator/solar systems
  • Marine and RV high-power installations
  • Critical backup power systems
  • Residential and light commercial applications

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
