REL200300100 Energy Meter VM-3P75CT

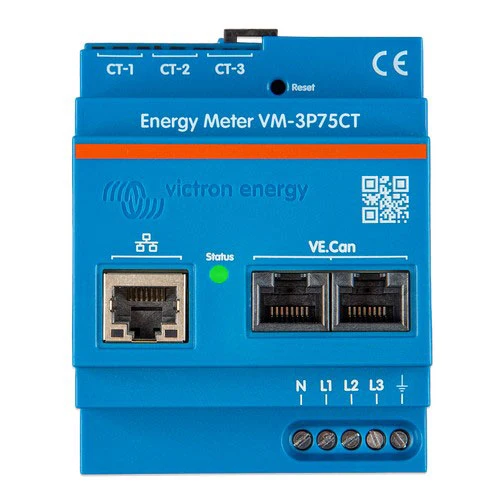

Victron Energy Meter VM-3P75CT

The Victron Energy Meter VM-3P75CT is a three-phase energy meter designed for grid, generator, and PV-inverter monitoring in compatible Victron systems. Using the included 75A current transformers, it measures power and energy across all three phases and can be integrated with a Victron GX device by either VE.Can or Ethernet.

Key Features

• Three-phase energy measurement — monitors all three phases simultaneously
• Included 75A CTs — current is measured using the supplied current transformers
• VE.Can connectivity — connects directly to a compatible GX device over a properly terminated VE.Can network
• Ethernet connectivity — can connect through the local network using Ethernet and Modbus/UDP
• ESS integration — suitable for grid measurement and other supported energy-meter roles in Victron systems
• Bidirectional measurement — measures power and energy flow in both directions

Specifications

• Product number: REL200300100
• Phases: 3-phase
• Rated current: 75A via included current transformers
• Communication: 2 × VE.Can RJ45 ports; 1 × Ethernet RJ45 port
• Ethernet protocol: Modbus/UDP
• Protection category: IP20

Ideal For

• Victron ESS installations
• Three-phase grid monitoring
• PV inverter or generator measurement in compatible GX systems
• Residential and commercial energy monitoring

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
