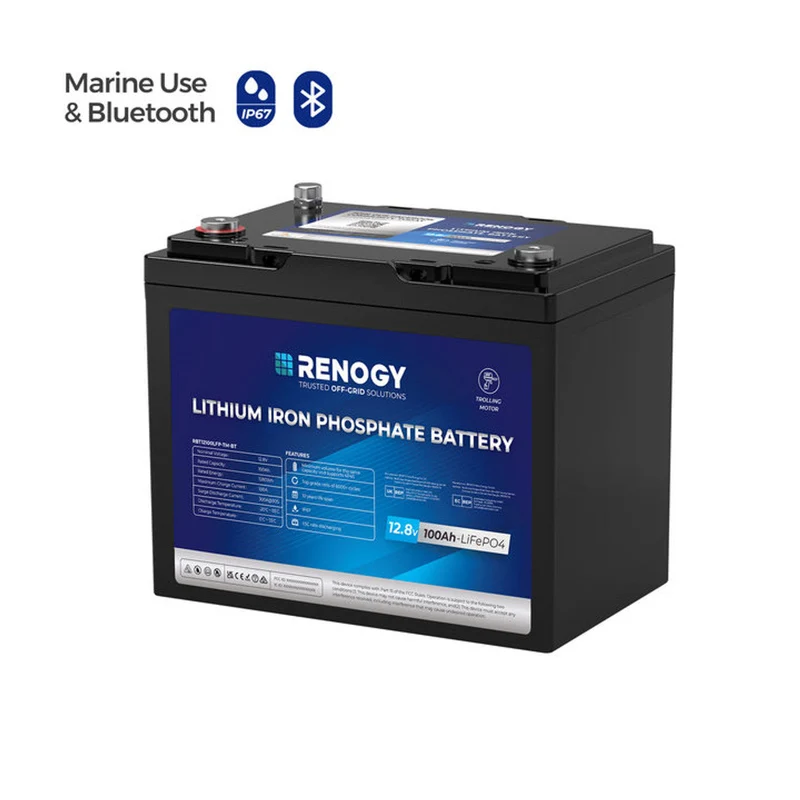

Renogy Core - 12V 100Ah Trolling Motor Group 24 LiFePO4 Battery w/ Bluetooth

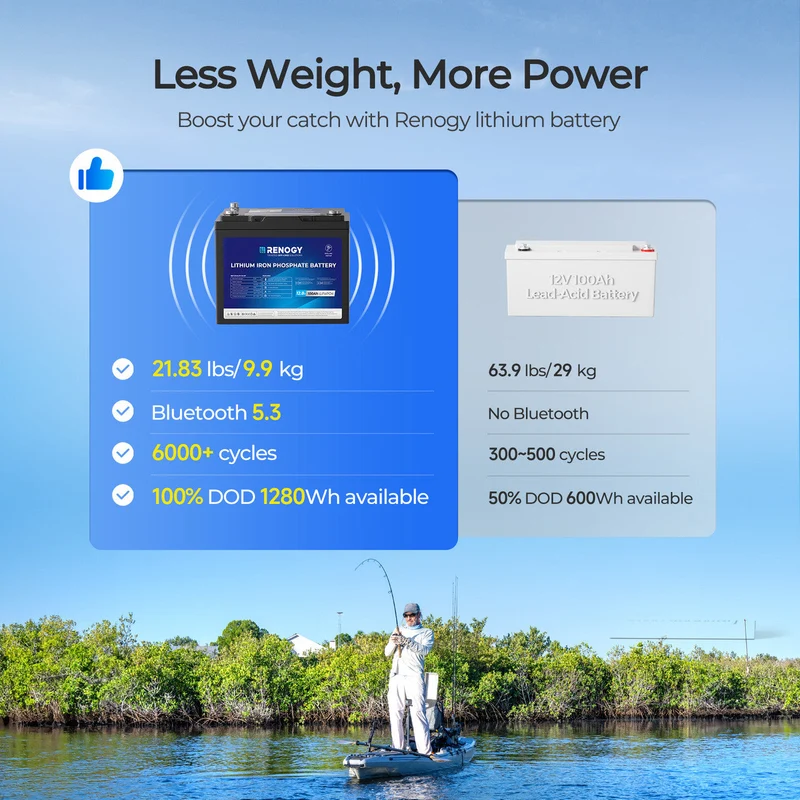

Power your trolling motor with confidence. The Renogy Core 12V 100Ah LiFePO4 battery delivers 150A continuous / 300A peak discharge — enough muscle for 12V to 36V trolling motor setups — while weighing just 21.83 lbs, half the weight of a comparable lead-acid battery.

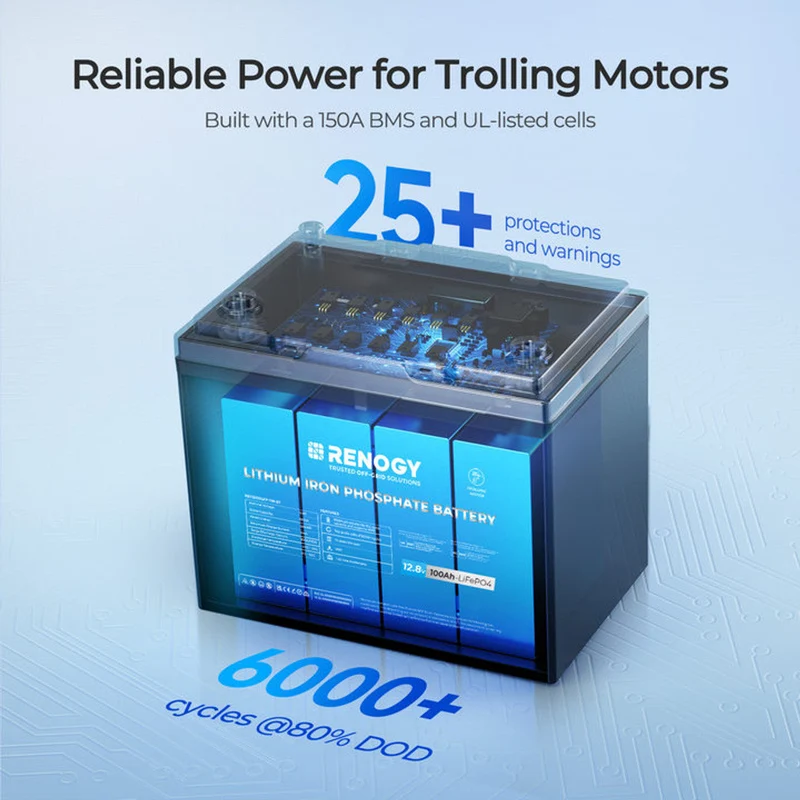

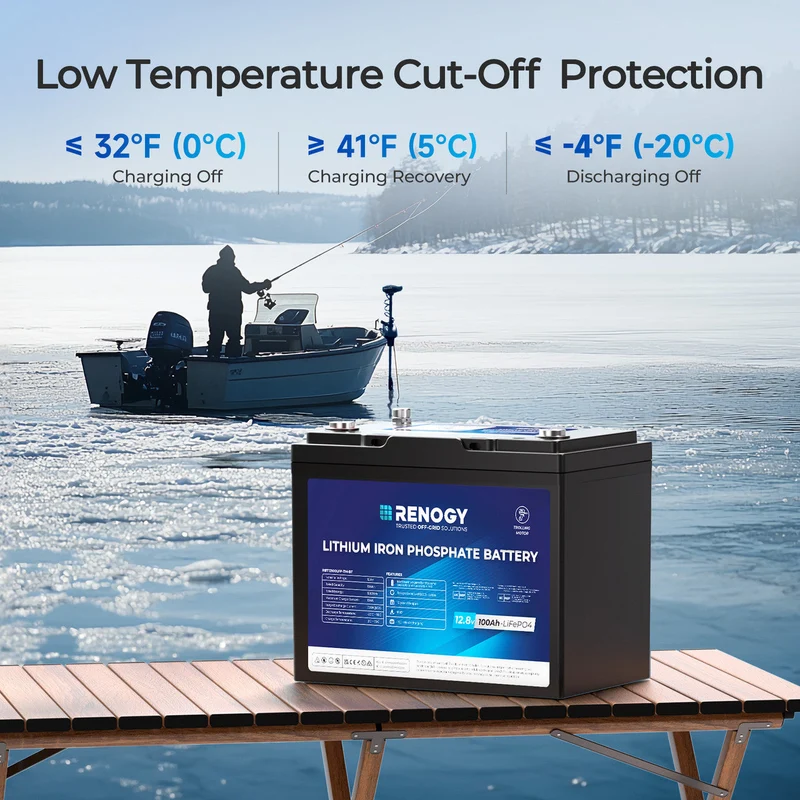

Built for the water. Rated IP67 waterproof with marine-grade protection, this Group 24 form factor fits where most Group 31 batteries won't. Monitor charge status from the boat or dock via the built-in Bluetooth 5.3 app. The integrated 150A BMS with low-temperature cut-off keeps your battery protected in cold-weather conditions.

Electrical Specifications

• Capacity: 100Ah (0.5C, 25°C)
• Nominal Voltage: 12.8V
• Energy: 1,280Wh
• Cycle Life: 5,000 cycles @ 80% DOD (80% EOL)

Charging Parameters

• Charge Voltage Range: 10.8V – 14.8V
• Max Continuous Charge Current: 100A
• Charge Temperature: 0°C to 55°C (32°F to 131°F)

Discharging Parameters

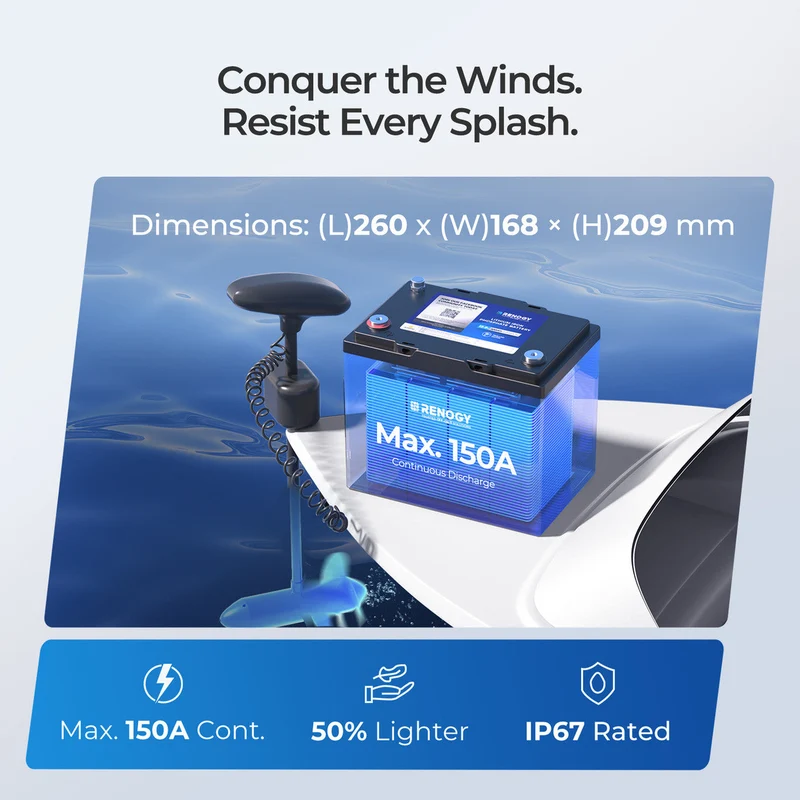

• Max Continuous Discharge: 150A
• Peak Discharge: 300A @ 30s
• Discharge Temperature: -20°C to 55°C (-4°F to 131°F)

Mechanical Specifications

• Dimensions (L × W × H): 10.24 × 6.61 × 8.23 in (260 × 168 × 209 mm)
• Weight: 21.83 lbs / 9.9 kg
• Terminal: M8 × 1.25 × 12 mm bolt
• Protection Rating: IP67
• Storage Temperature: 0°C to 45°C (32°F to 113°F)

Compatible Applications

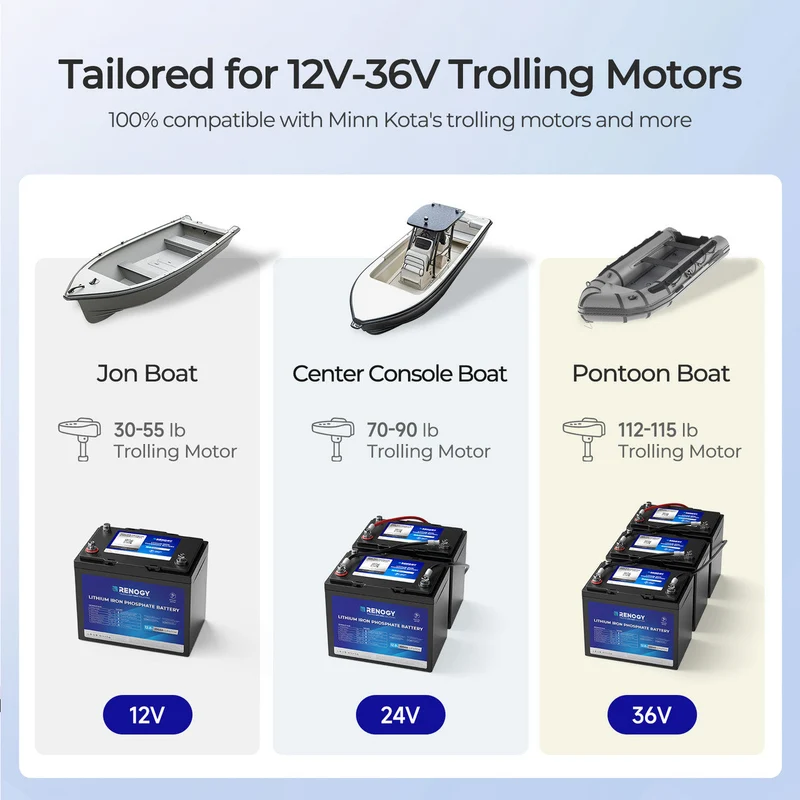

Electric trolling motors (12V–36V), electric outboards, RVs, off-road vehicles, and workshop power systems.

Certifications & Warranty

RCM, MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA — backed by a 5-year material warranty.
