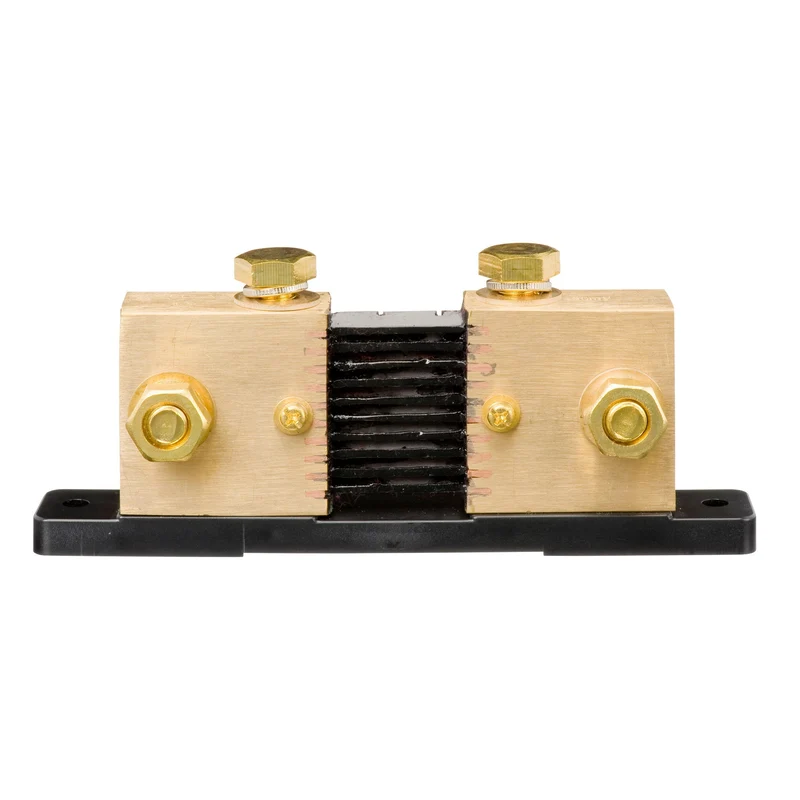

Victron Shunt 1000A/50mV — 2xM10
The Victron Shunt 1000A/50mV is a high-accuracy DC current shunt designed for use with battery monitors in large off-grid, marine, and industrial power systems. With dual M10 connection points and a 1000A continuous current rating, it provides precise current measurement for accurate state-of-charge tracking. Suitable as a higher-current shunt for compatible Victron BMV battery monitors when the BMV shunt settings are configured for 1000A/50mV.
Key Features
- 1000A continuous current rating — suitable for large battery banks and high-current systems
- 50mV rated voltage drop at 1000A — enables accurate high-current measurement
- Dual M10 connections — secure, low-resistance busbar connections
- BMV upgrade option — can replace the standard BMV shunt for higher-current systems when configured accordingly
- Robust construction — built for reliable long-term high-current use
Specifications
- Max continuous current: 1000A
- Rated voltage drop: 50mV at 1000A (approximately 50µΩ)
- Connection: 2x M10
- Accuracy class: 0.5
Ideal For
- Large off-grid solar battery banks
- Marine and yacht high-current electrical systems
- Industrial and commercial energy storage systems
- Replacement or upgrade shunt for Victron battery monitors
