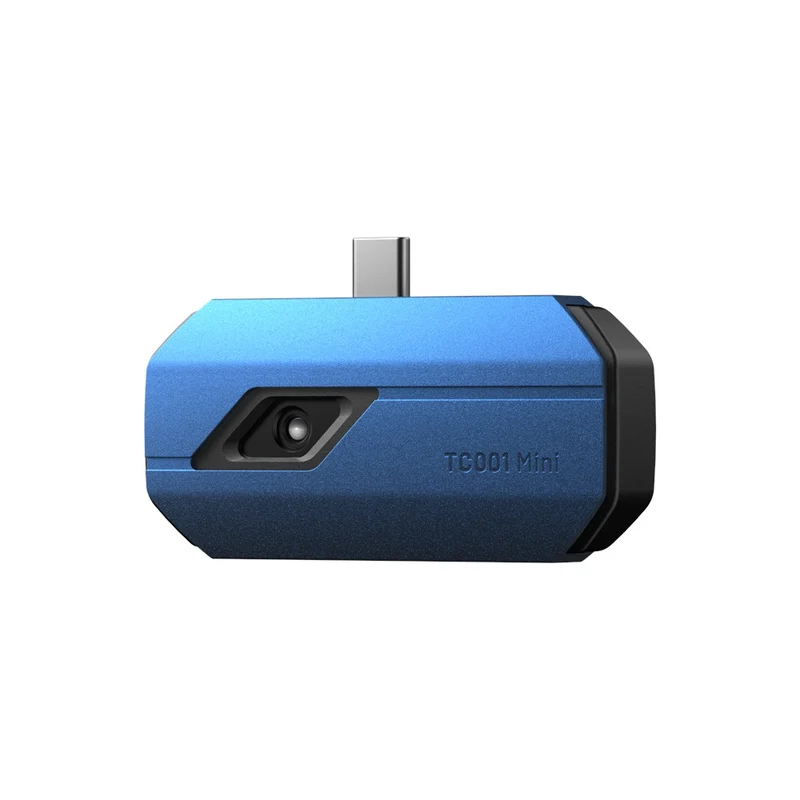

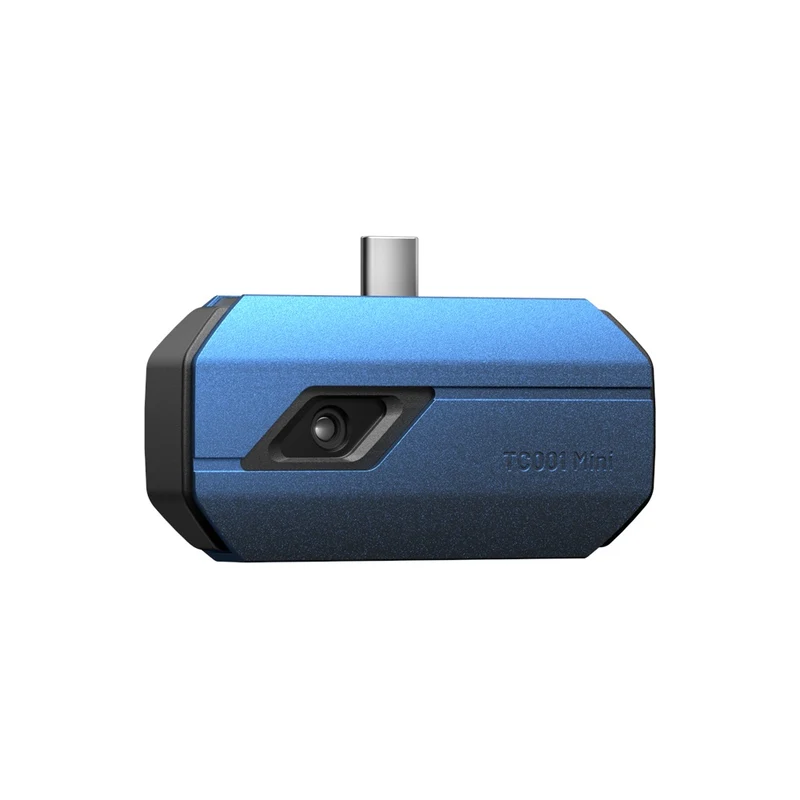

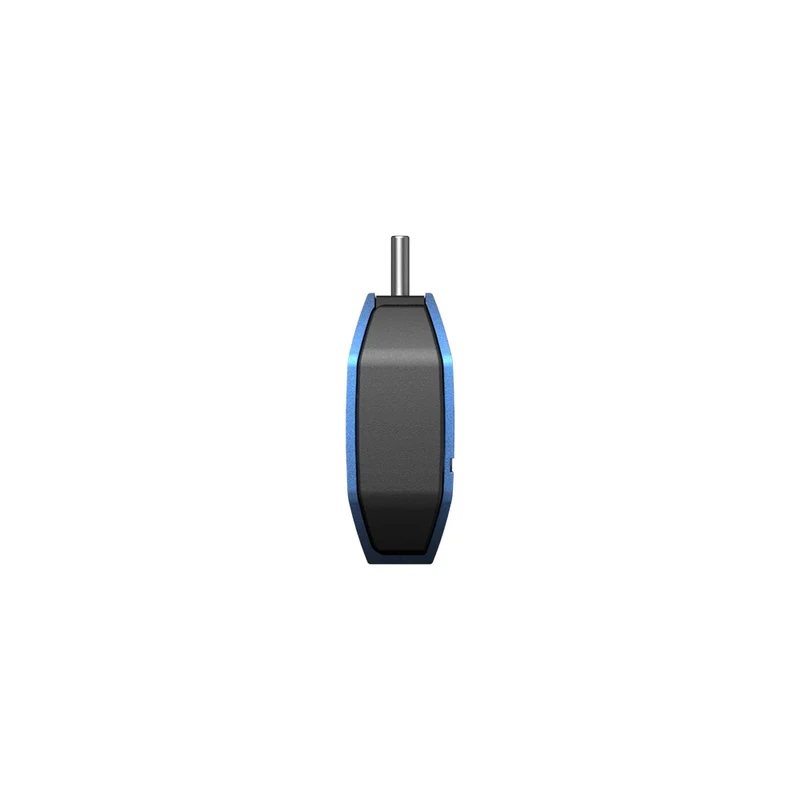

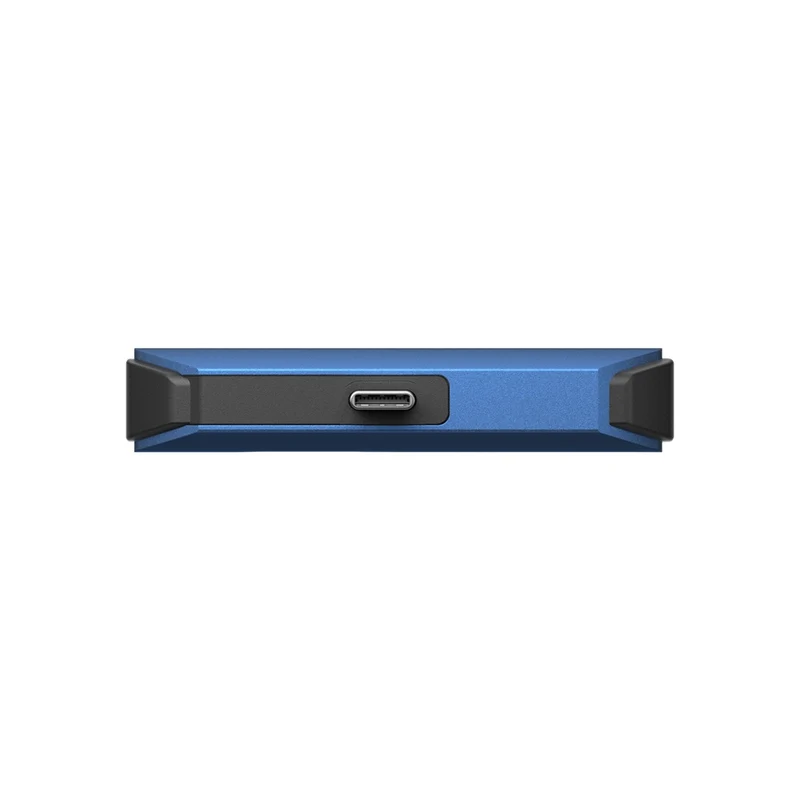

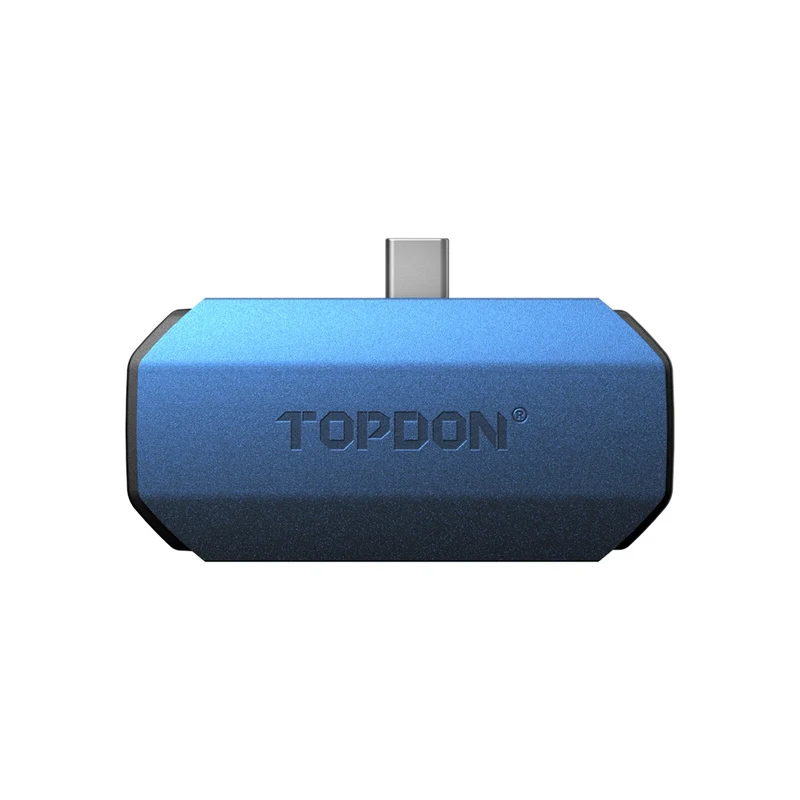

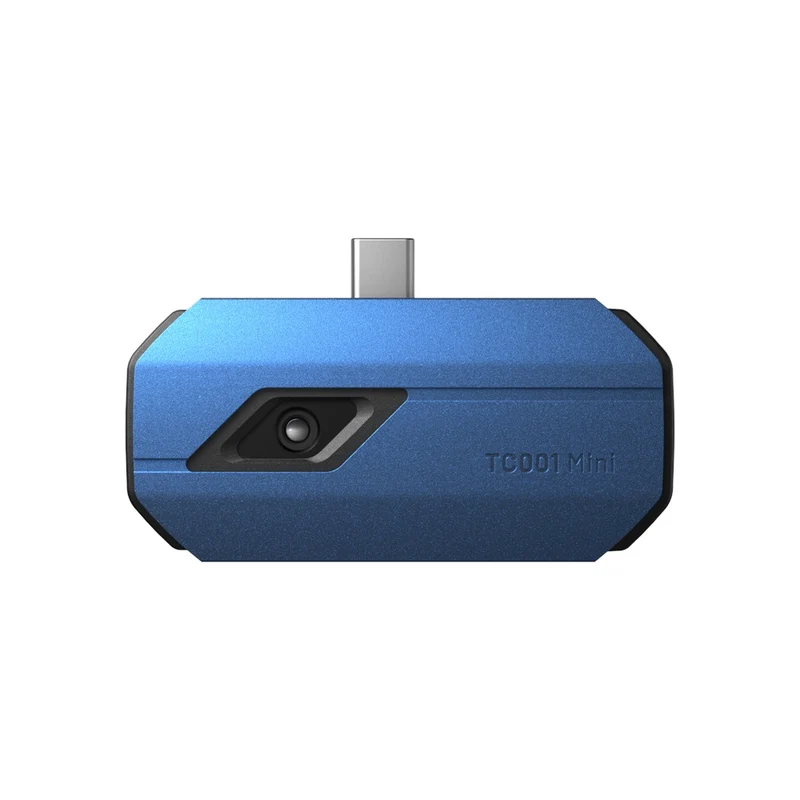

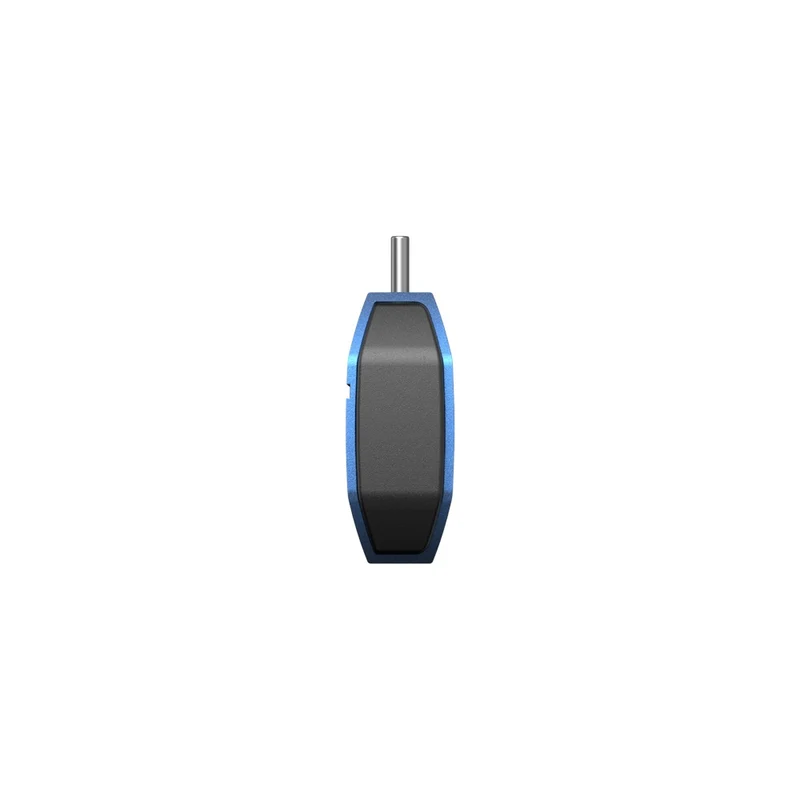

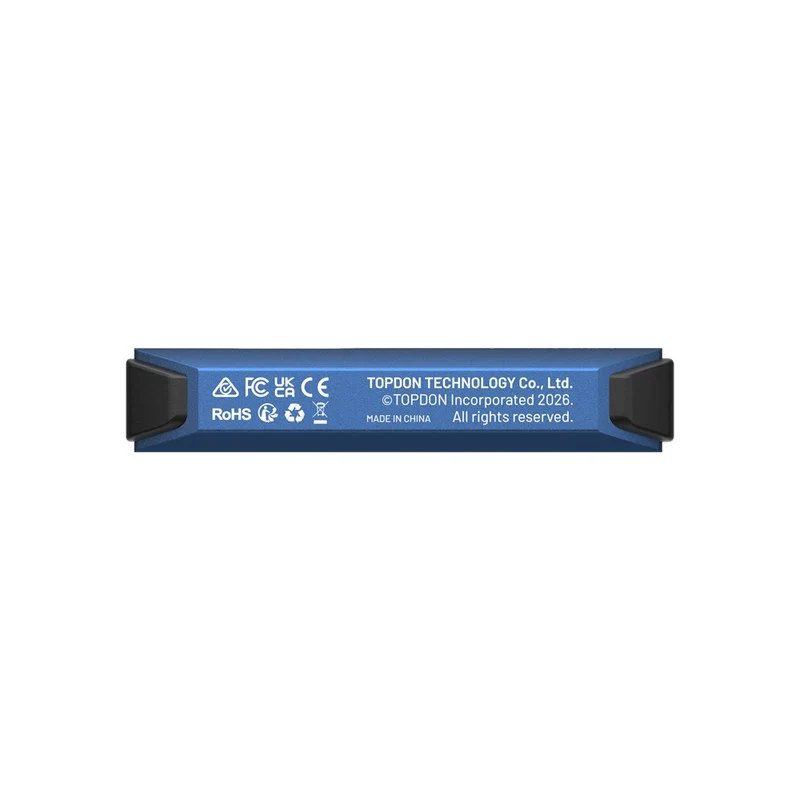

TC001 Mini

Turn your phone, tablet, or PC into a thermal inspection tool with the TC001 Mini. Its 96 × 96 IR sensor produces a TISR-enhanced 384 × 384 image, revealing temperature differences that can point to heat loss, HVAC issues, and overheating components. When you need help interpreting what you see, TopFix AI can analyze the thermal image and suggest possible causes and next steps.

Features

No Separate Display Required

• Turn a compatible iOS, Android, or Windows device into a thermal inspection screen.

See Subtle Temperature Differences

• TISR enhances the 96 × 96 IR sensor data into a sharper 384 × 384 image. ≤40 mK sensitivity reveals subtle temperature differences, while the 25 Hz refresh rate keeps the live view smooth.

Check Cold Spots and Hot Components

• Measure surface temperatures from -4°F to 1,022°F (-20°C to 550°C) across HVAC systems, appliances, vehicles, electronics, and more.

Small Enough to Keep Close

• At just 1.1 oz (30 g), the battery-free TC001 Mini is easy to keep in a toolbox, workbench, or vehicle.

Inspect on Mobile. Analyze on PC.

• Use TopInfrared on a compatible mobile device for quick inspections or TopView on a Windows PC for a larger view and more detailed analysis.

Specifications

• System Compatibility: iOS, Android, Windows

• Resolution: 96 × 96 (Enhanced to 384 ×384 with TISR)

• Refresh Rate: 25 Hz

• Thermal Sensitivity (NETD): ≤40 mK

• Temperature Range:  -20 °C to 550 °C (-4 °F to 1,022 °F)

• Accuracy: ±2 °C or ±2%

• Spectral Range: 8-14 μm

• Pixel Size: 12 μm

• Product Weight: 30 g (0.07 lb)

• Product Dimensions: 70 × 14 × 44mm (2.76 × 0.55 × 1.73 in)


Packing List

• TC001 Mini

• Extension Cable

• EVA Carrying Bag

• Quick User Guide

• Microfiber Cleaning Cloth
