36V 7.8Ah 18650 battery 10S3P modified bicycles electric vehicles with PCB + 42V 2A charger

36V 7.8Ah 18650 battery 10S3P modified bicycles electric vehicles with PCB + 42V 2A charger

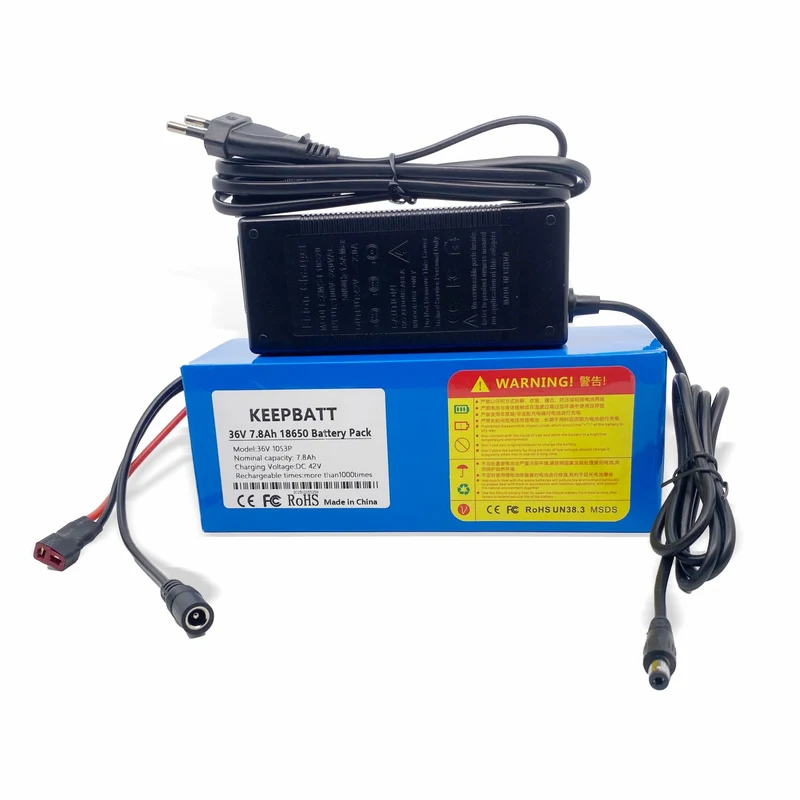

Shipping list:

• 1 、 36V 7.8A 18650 battery 1pcs
• 2 、 42V 2A charger 1pcs

Product parameters

• Battery type: 18650
• Single cell voltage: 3.7v
• Single battery capacity: 2000mAh
• Combination: 10 series 3 and
• Rated voltage: 36V Input voltage: 42V Output voltage: 36-42V
• According to the combined capacity: 7800mAh (7.8Ah)
• Battery Dimensions: 195*70*65 (the standard size) 3 * 10
• Outside packing: Blue PVC
• Inside with protection circuit: overcharge, over discharge, over current, short circuit protection!

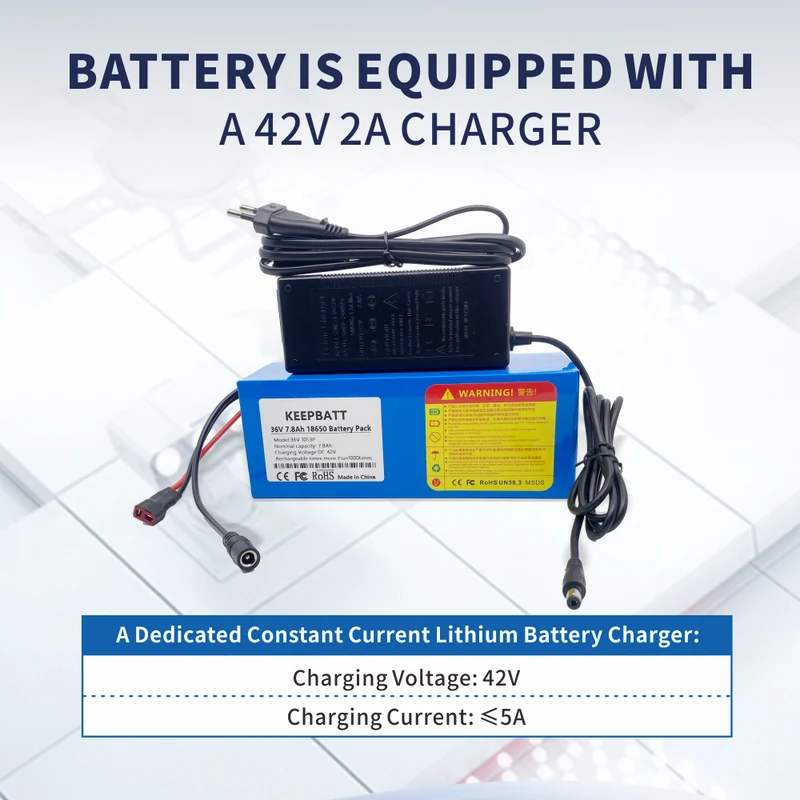

[] The battery charging requirements:

• 1: the need for a dedicated lithium battery charger; constant current;
• 2: charging voltage: 42v
• 3: charging current: ≤5A


[] The battery discharge requirements:

• 1: output 18 lines, length 200mm, red and black each
• 2: Enter the socket line which leads to a 2.1 length 200mm
• 3: rated discharge current: ≤10A
• 4: maximum instantaneous current: 40A
• 5: maximum operating current: 13A

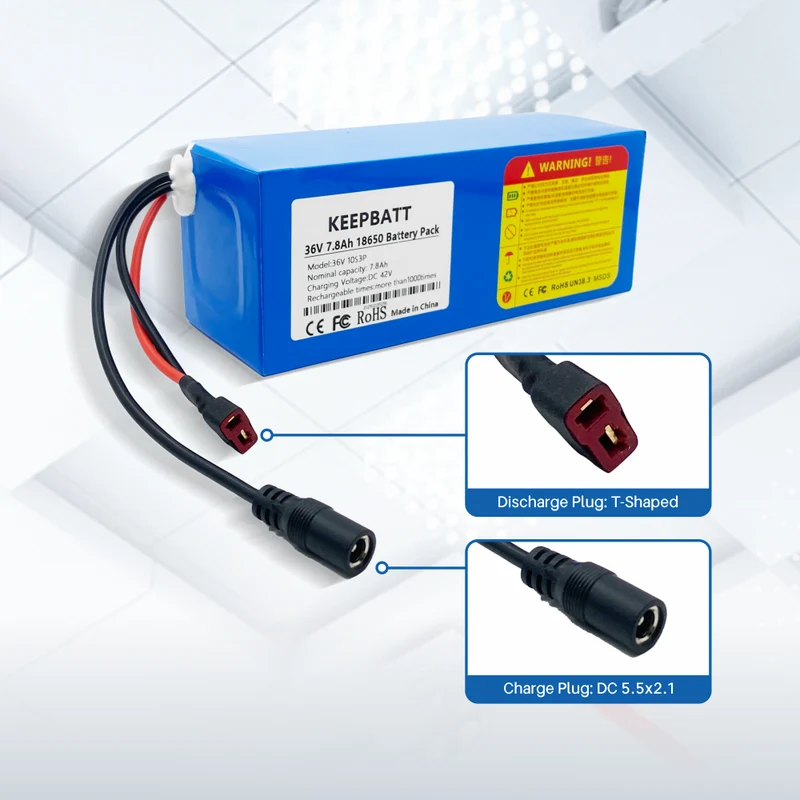

• Lead Length: about 10cm T-shaped connector and female connector DC5.5 * 2.1

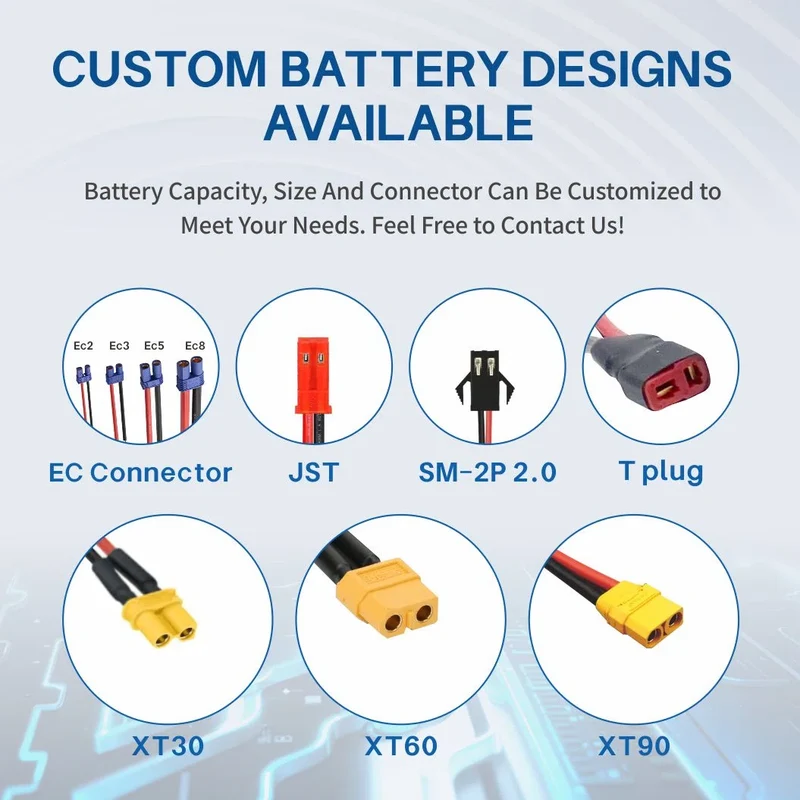

Customized battery:

Battery can be customized, please send us email (address: [email protected]) and comfirm the following details to inquiry:
1, What equipment is used? this confirm it will need what's cell will be (capacity cell or power cell)
2,working Voltage
3,current
4,connector type (if you don't know this, please send multi-aspect picture -Front, side pictures)
5,size of the battery

thank you.
