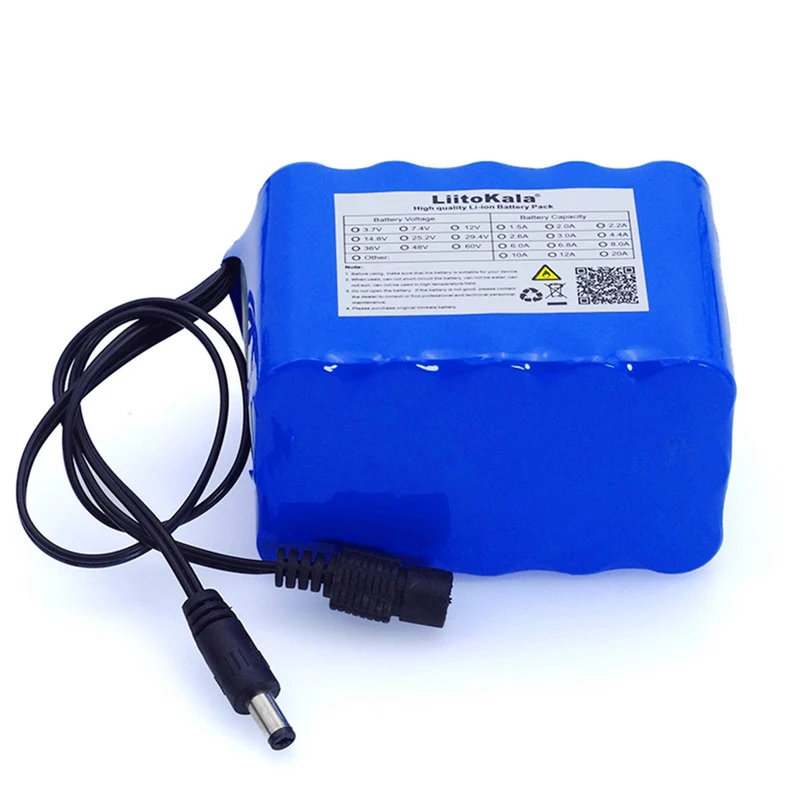

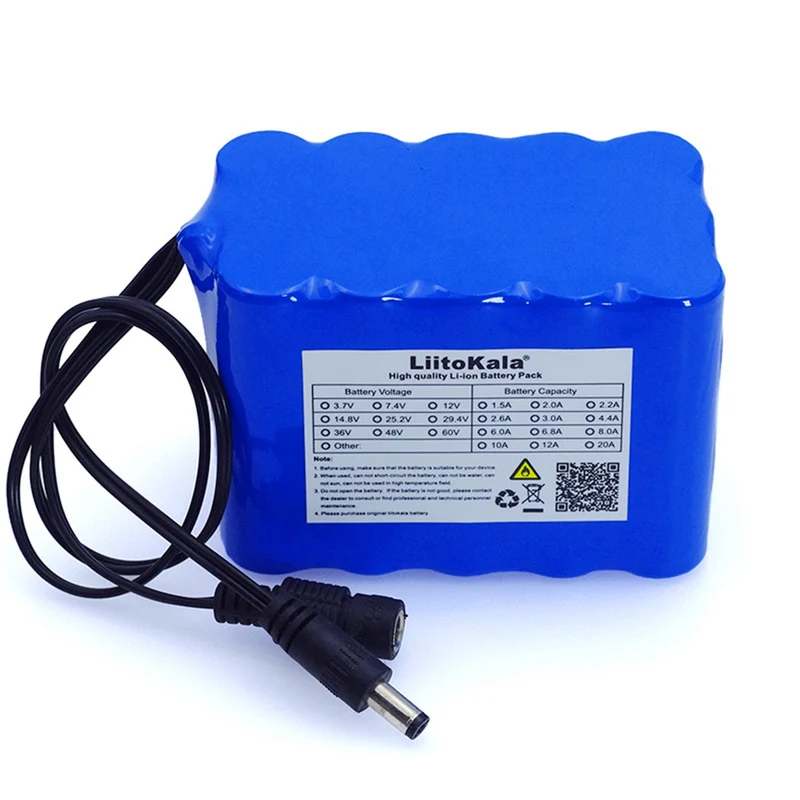

Liitokala 18650 Li-ion battery 12.6 V 10000 mAh with BMS Circuit Protection Board DC 5.5 * 2.1 mm emergency power supply

Liitokala 18650 Li-ion battery 12.6 V 10000 mAh with BMS Circuit Protection Board DC 5.5 * 2.1 mm emergency power supply

Shipping list:

• 12v 10ah battery pack 1pcs

Technical parameters:

• Nominal voltage: 12 v
• The input voltage: 12.6v
• Output voltage: 9V to 12.6V
• Battery capacity: 10000mAh (10Ah)
• Outside diameter size:
• Can choose size: 95 * 57 * 70mm
• Total weight: 750g
• Packing: blue PVC
• With protection circuit: have overcharge, over discharge, over current, short circuit protection functions


The battery requirements:

• 1: need li-ion battery chargers for; Constant current constant voltage;
• 2: the charging voltage: 12.6v
• 3: charging current: 1-3A
• 4: Support the charger is charging when the red light is full of green light

Battery discharge requirements:

• 1: input: 5.5 * 2.1 male wire
• 2: DC: 5.5 * 2.1mm
• 3: the maximum instantaneous current: 15A
• 4: maximum working current: 10A
• 5: output input if there is any other requirement can contact the owner, the above parameters for the standard delivery


Applicable scope:
All the 12 v electrical equipment, washers, coal, hernia lamp, instead of the 12 v battery, instruments and meters, amplifier, monitoring, electrical class, all kinds of item 12 v lamp.

Lithium battery advantage

• 1. Small volume, light weight, large capacity, environmental protection, no memory effect.
• 2. is the power supply for portable electronic devices, but more delicate, lithium-ion batteries in use, please note the following points.


Lithium battery common feeling

• 1. You need a 12.6V li-ion battery charger charging standard.
• 2. the ban on large current discharge.
• 3. Prohibited discharge, single battery voltage should not be below 2.5V.
• 4. It is strictly forbidden to disassemble, short circuit batteries, most likely caused by short circuit on fire.
• 5. use temperature 0 to 60 degrees.

The package includes:

• 1x battery
